Inner Rear View Mirror: Installation

INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
1. Slide and install the inner rear view mirror.
2. Engage the 2 claws and install the cover.

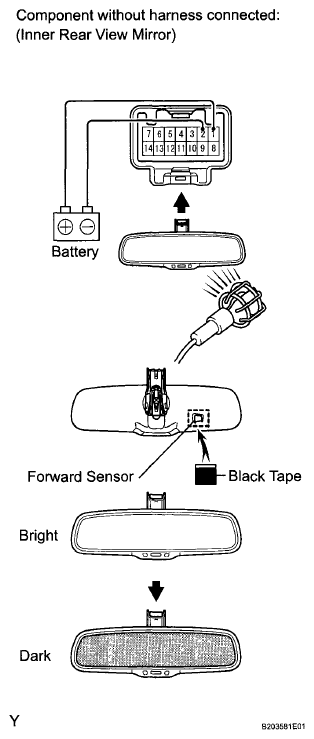

Fig 1: Checking Mirror Surface Changes From Bright To Dark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
1. Using a "TORX" socket wrench T20, install the inner rear view mirror with the screw.
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  Fig 2: Removing/Installing Inner Rear View Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the inner rear view mirror cover.
Fig 3: Installing Inner Rear View Mirror Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
