Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (ECM - BATTERY)
    1. Disconnect the E14 or E7 ECM connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage (for 1GR-FE)

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      E14-15 (PI) - Body ground Ignition switch ON 11 to 14 V

      Standard Voltage (for 2TR-FE)

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      E7-18 (PI) - Body ground Ignition switch ON 11 to 14 V
    3. Reconnect the ECM connector.

      OK: PROCEED TO PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

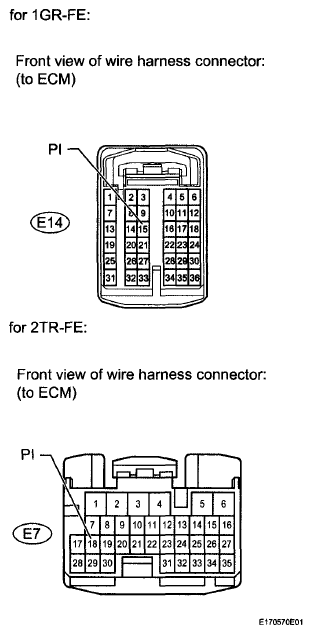

      Fig 1: Identifying E14 Or E7 ECM Connector
      G06087258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
    1. Disconnect the E14 or E7 ECM connector.
    2. Disconnect the combination meter C9 connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      C9-24 - E7-18 (PI)(2) Always Below 1Ω
      C9-24 - E14-15(PI)(1) Always Below 1Ω
      C9-24 - Body ground Always 10 kΩ or higher
      (1) for 1GR-FE

      (2) for 2TR-FE
    4. Reconnect the combination meter connector.
    5. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

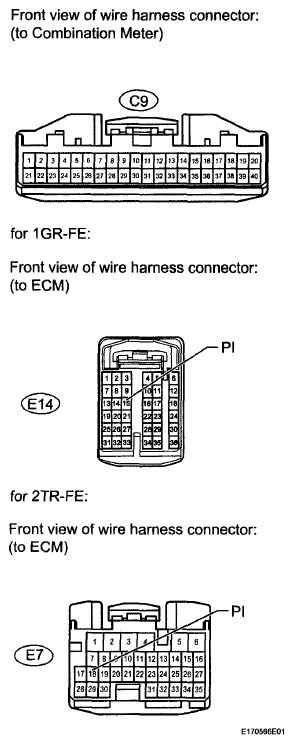

      Fig 2: Identifying E14, E7 ECM And Combination Meter C9 Connector
      G06087259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY)
    1. Disconnect the C9 combination meter connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      C9-21 - Body ground Ignition switch ON 11 to 14 V
    3. Reconnect the combination meter connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      Fig 3: Identifying C9 Combination Meter Connector Terminals
      G06087260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: REPLACE COMBINATION METER ASSEMBLY  (See REMOVAL )
