Inspection Procedure
- CHECK HARNESS AND CONNECTOR (ECM - BATTERY)
- Disconnect the E9 or E7 ECM connector.
- Turn the ignition switch to the ON position.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

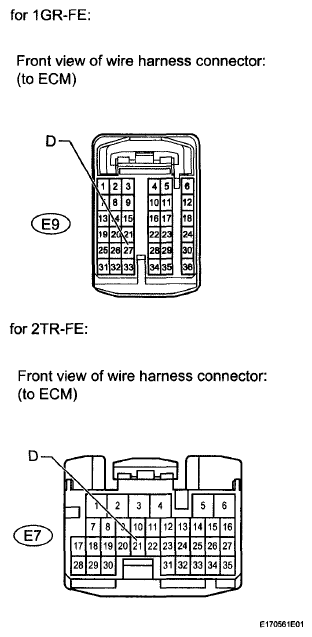

VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition E9-27 (D) - Body ground(1) Clutch Pedal Depressed Below 1 V E7-21 (D) - Body ground(2) Clutch Pedal Depressed Below 1 V E9-27 (D) - Body ground(1) Clutch Pedal Released 11 to 14 V E7-21 (D) - Body ground(2) Clutch Pedal Released 11 to 14 V (1) for 1GR-FE (2) for 2TR-FE - Reconnect the ECM connector.
OK: PROCEED TO PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
NG: Go to Next Step
- INSPECT CLUTCH SWITCH ASSEMBLY
- Remove the clutch switch (See REMOVAL ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

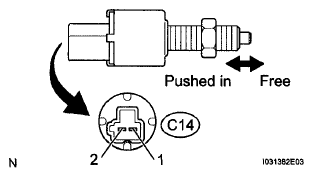

RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition C14-1 - C14-2 Clutch pedal depressed 10 kΩ or higher C14-1 - C14-2 Clutch pedal released Below 1 Ω - Reinstall the clutch switch.
NG: REPLACE CLUTCH SWITCH ASSEMBLY (See REMOVAL )
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (CLUTCH SWITCH ASSEMBLY - ECM)
- Disconnect the E7 or E9 ECM connector.
- Disconnect the C14 clutch switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

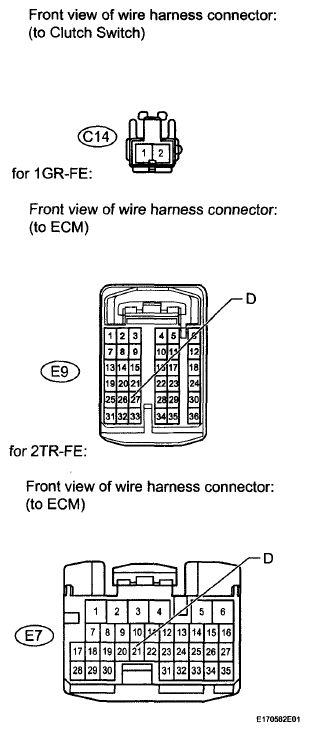

RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition C14-2 - Body ground Always 10 kΩ or higher C14-2 - E9-27 (D)(1) Always Below 1 Ω C14-2 - E7-21 (D)(2) Always Below 1 Ω (1) for 1GR-FE (2) for 2TR-FE - Reconnect the clutch switch connector.
- Reconnect the ECM connector.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH SWITCH ASSEMBLY - ECM)
