Combination Meter: Installation

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.
    2. Install the combination meter assembly with the 4 screws.

    Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL  (See INSTALLATION )

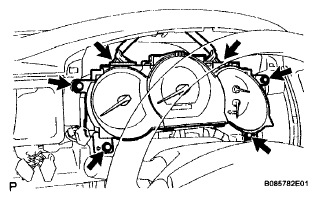

    Fig 1: Locating Combination Meter Assembly With Screws
    G06087523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY  (See REASSEMBLY )
  5. INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake)  (See INSTALLATION )
  6. INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake)  (See INSTALLATION )
  7. INSTALL COWL SIDE TRIM BOARD LH (for Regular Cab)  (See INSTALLATION )
  8. INSTALL COWL SIDE TRIM BOARD LH (for Access Cab)  (See INSTALLATION )
  9. INSTALL COWL SIDE TRIM BOARD LH (for Double Cab)  (See INSTALLATION )
  10. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab)  (See INSTALLATION )
  11. INSTALL FRONT DOOR SCUFF PLATE LH (for Access Cab)  (See INSTALLATION )
  12. INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab)  (See INSTALLATION )
  13. INSTALL FRONT FLOOR FOOTREST  (See FRONT FLOOR FOOTREST )
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
