Seat Belt Warning: Notes

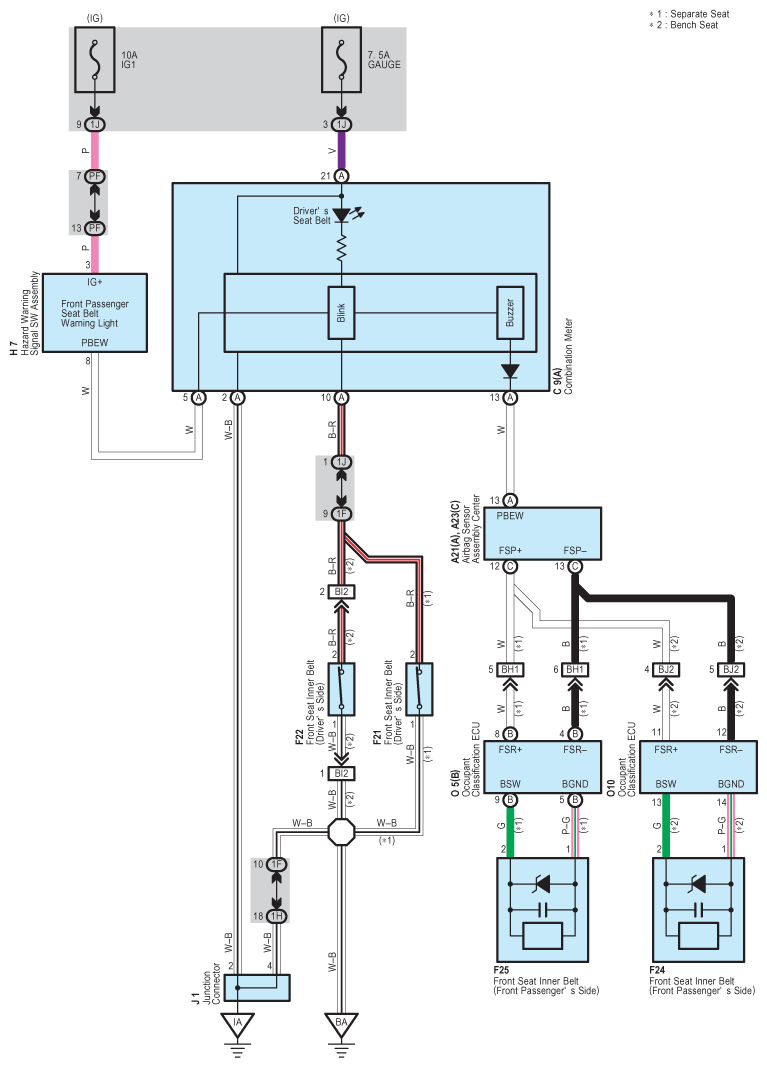

Fig 1: Seat Belt Warning - Circuit Diagram

G07612710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
