Power Outlet (115V): Notes

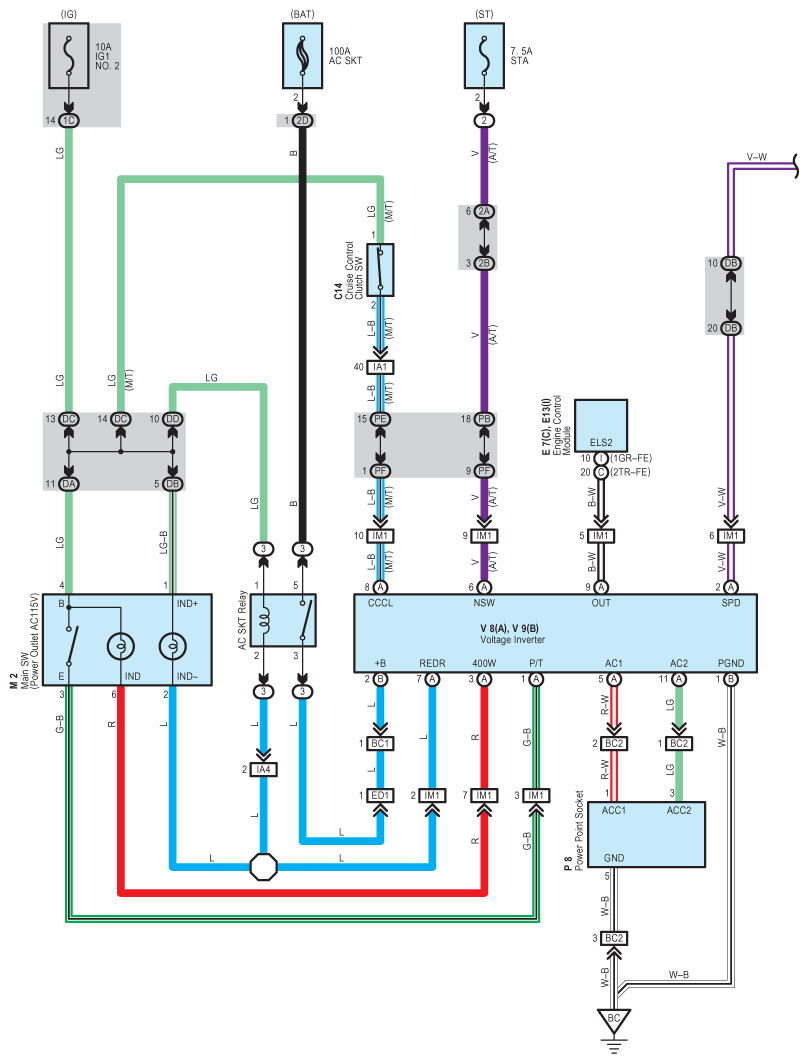

Fig 1: Power Outlet (115V) - Circuit Diagram (1 Of 2)
G07612713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Outlet (115V) - Circuit Diagram (2 Of 2)
G07612714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
