Parking Assist (Rear View Monitor): Notes

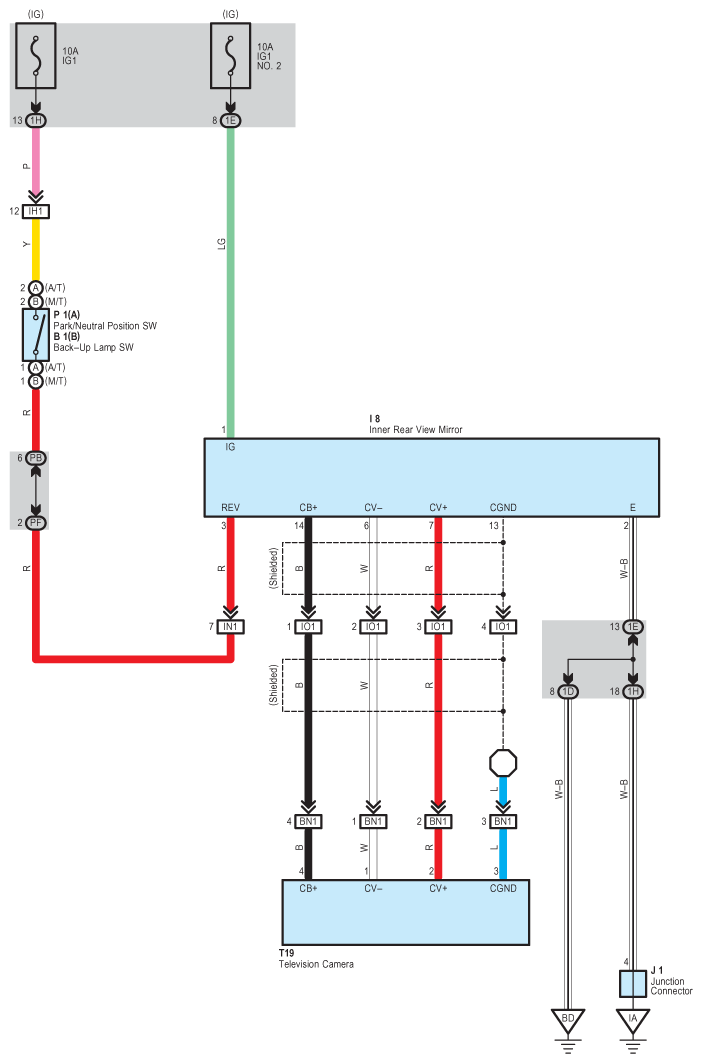

Fig 1: Parking Assist (Rear View Monitor) - Circuit Diagram

G07612722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
