Remote Control Mirror (w/o Driving Position Memory): Notes

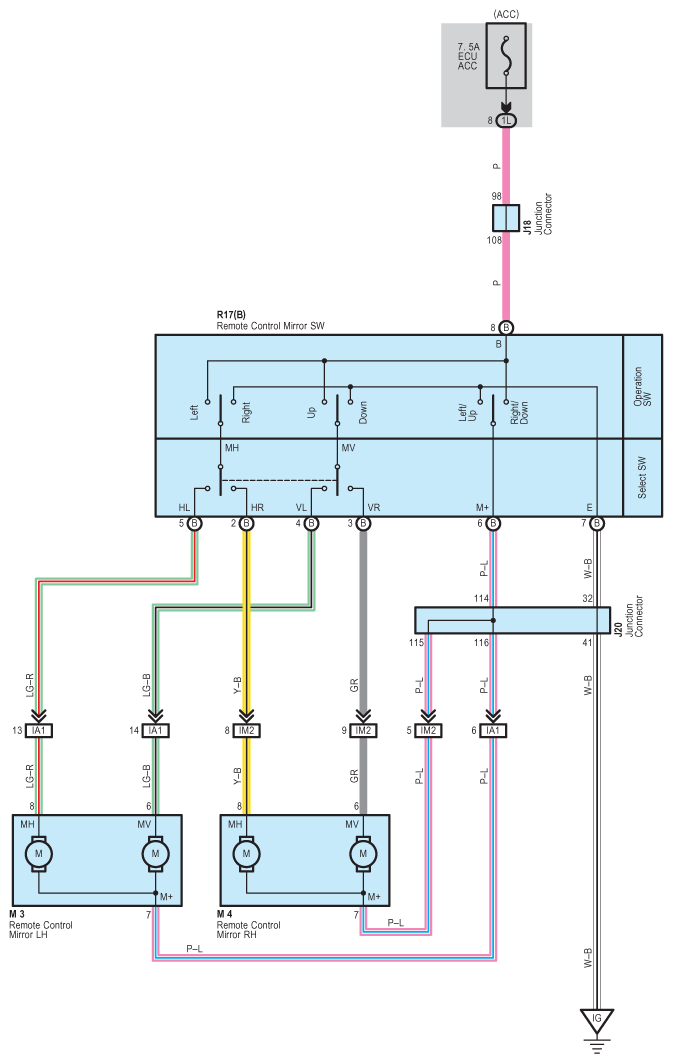

Fig 1: Remote Control Mirror (W/O Driving Position Memory) - Circuit Diagram

G07609505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
