Power Rear Quarter Window: Notes

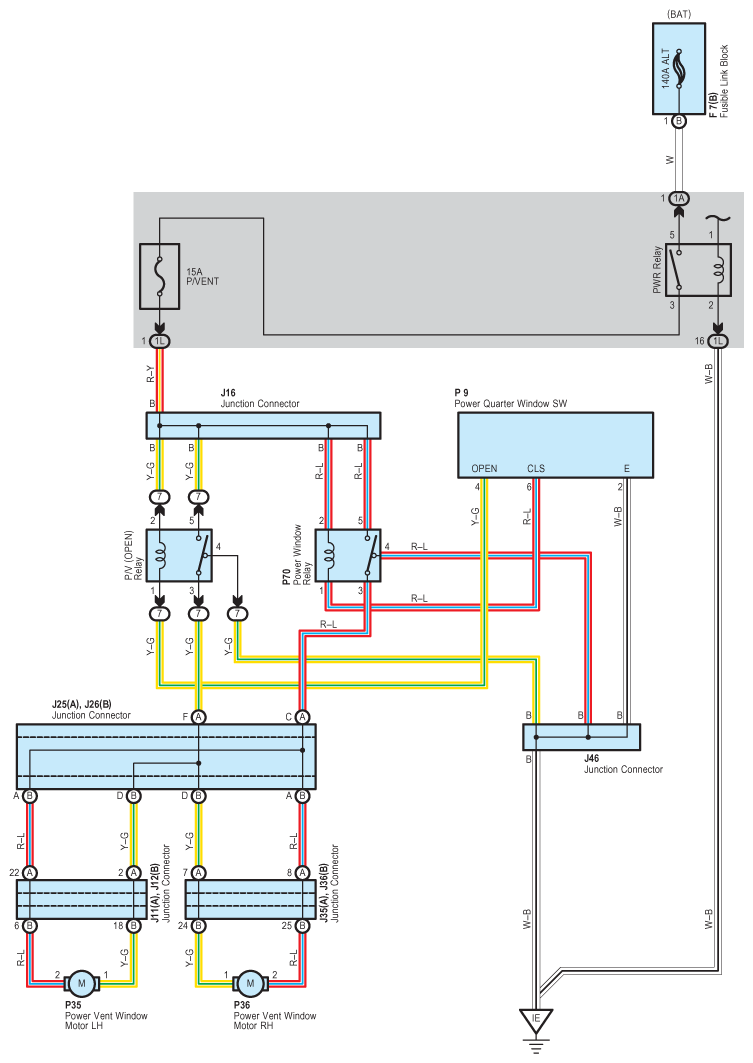

Fig 1: Power Rear Quarter Window - Circuit Diagram

G07609444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
