Multiplex Communication System (BEAN Bus): Notes

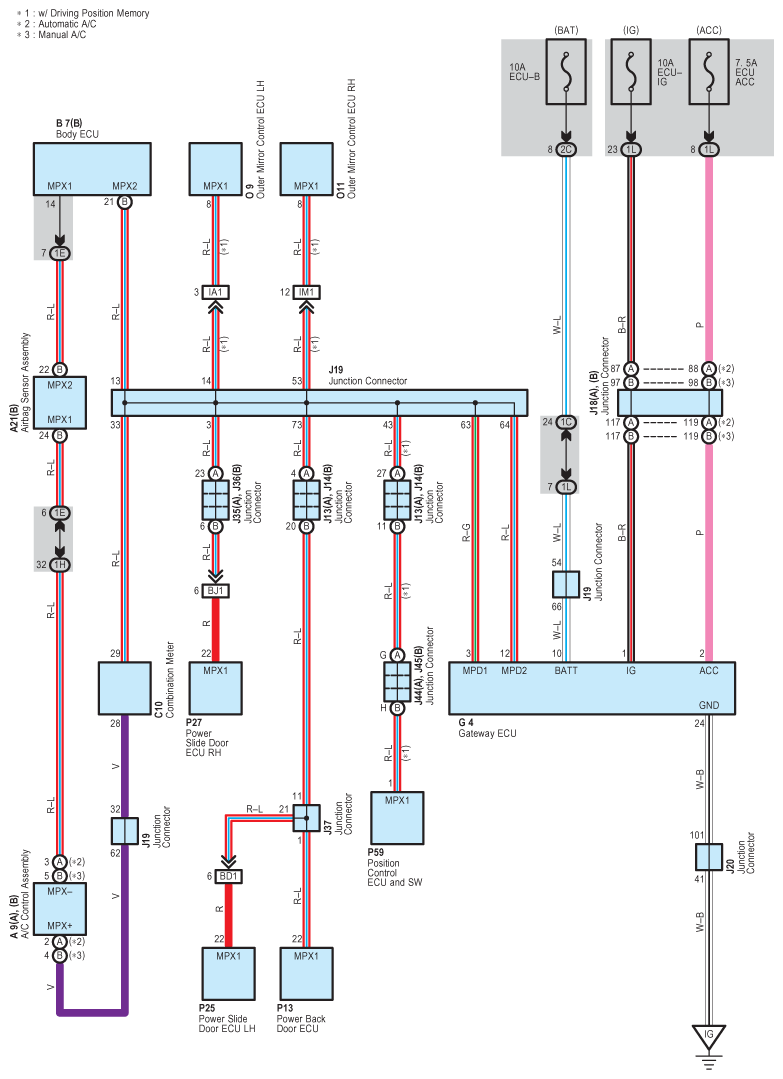

Fig 1: Multiplex Communication System (BEAN Bus) - Circuit Diagram

G07609367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
