Engine Immobiliser System: Notes

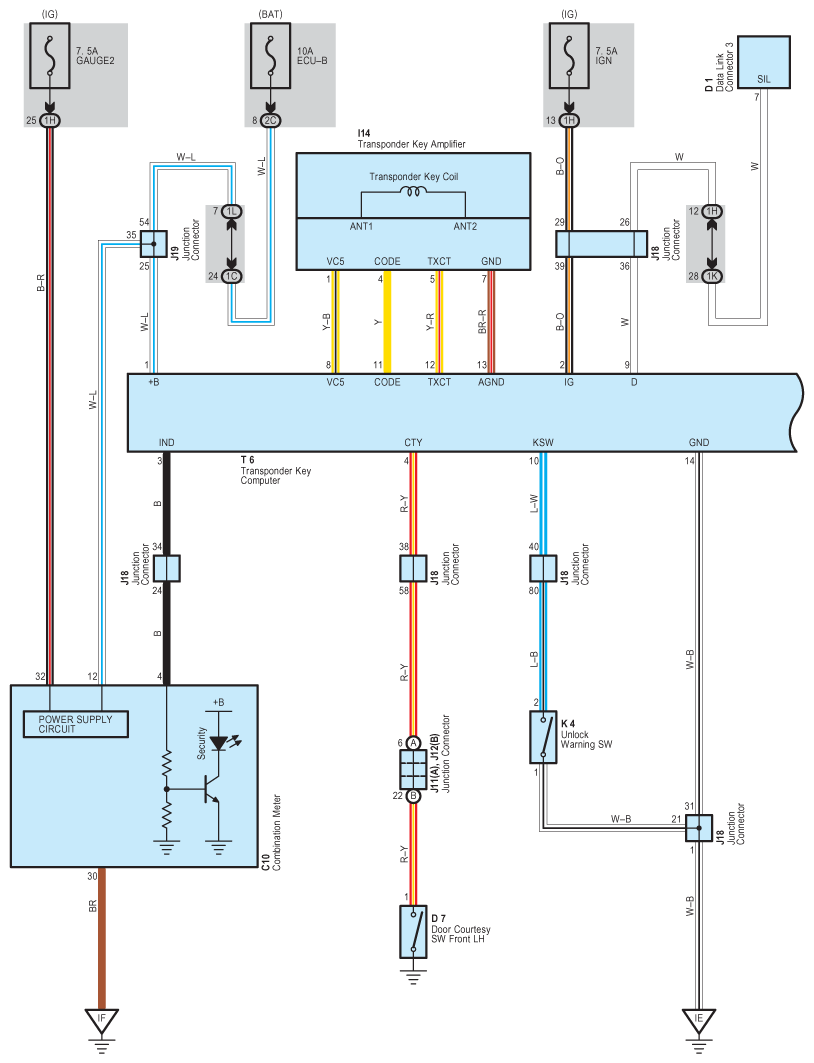

Fig 1: Engine Immobiliser System - Circuit Diagram (1 Of 2)
G07609364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

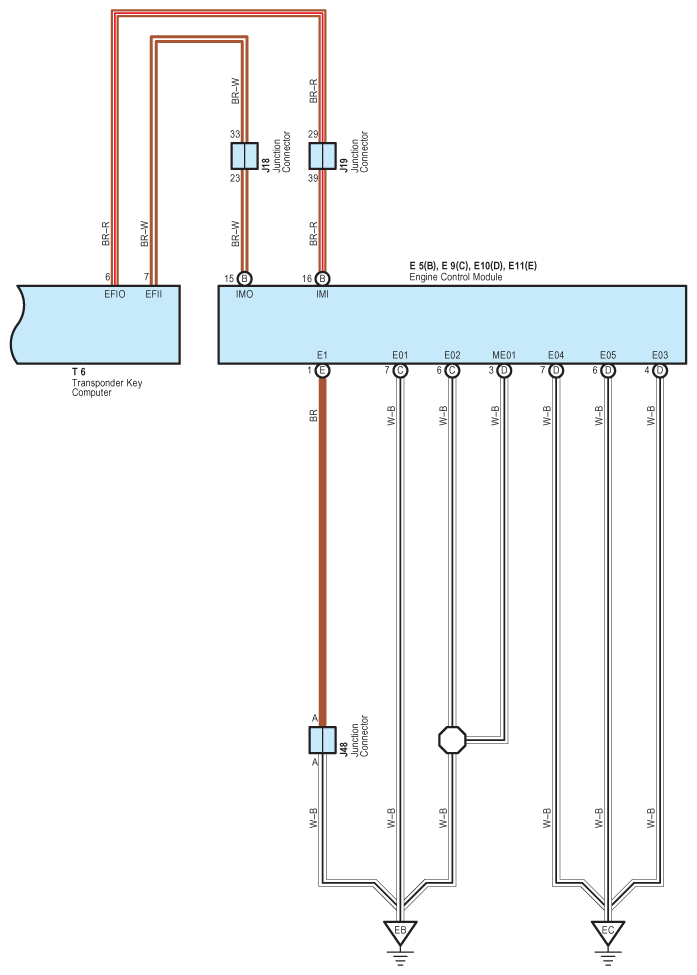

Fig 2: Engine Immobiliser System - Circuit Diagram (2 Of 2)
G07609365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
