Steering Pad Switch: Inspection

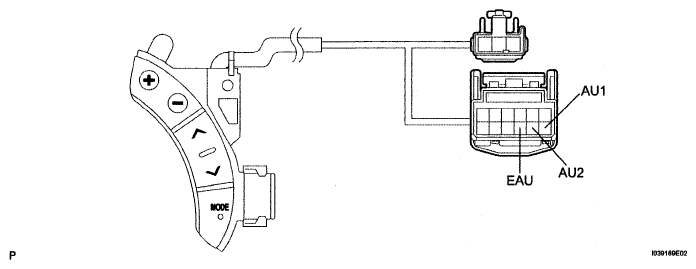

- INSPECT STEERING PAD SWITCH LH (w/o Navigation System)
- Measure the resistance according to the values in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition AU1 - EAU No switch is pushed Approx. 100 kΩ AU1 - EAU SEEK+ switch: push Approx. 0 Ω AU1 - EAU SEEK- switch: push Approx. 0.3 kΩ AU1 - EAU VOL+ switch: push Approx. 1 kΩ AU1 - EAU VOL- switch: push Approx. 3.2 kΩ AU2 - EAU No switch is pushed Approx. 100 kΩ AU2 - EAU MODE switch: push Approx. 0 Ω If the result is not as specified, replace the steering pad switch LH.
- Measure the resistance according to the values in the table below.

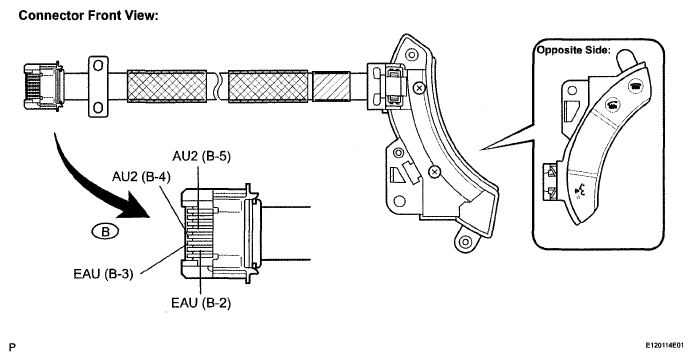

- INSPECT STEERING PAD SWITCH RH (w/ Navigation System)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition AU2 (B-4) - EAU (B-2) No switch is pushed 10 kΩ or higher AU2 (B-5) - EAU (B-3) AU2 (B-5) - EAU (B-2) AU2 (B-4) - EAU (B-3) AU2 (B-4) - EAU (B-2) VOICE switch: push Approx. 3.2 kΩ AU2 (B-5) - EAU (B-3) AU2 (B-5) - EAU (B-2) AU2 (B-4) - EAU (B-3) AU2 (B-4) - EAU (B-2) ON HOOK switch: push Approx. 0.3 kΩ AU2 (B-5) - EAU (B-3) AU2 (B-5) - EAU (B-2) AU2 (B-4) - EAU (B-3) AU2 (B-4) - EAU (B-2) OFF HOOK switch: push Approx. 1 kΩ AU2 (B-5) - EAU (B-3) AU2 (B-5) - EAU (B-2) AU2 (B-4) - EAU (B-3) If the result is not as specified, replace the steering pad switch RH.
- Measure the resistance according to the value(s) in the table below.

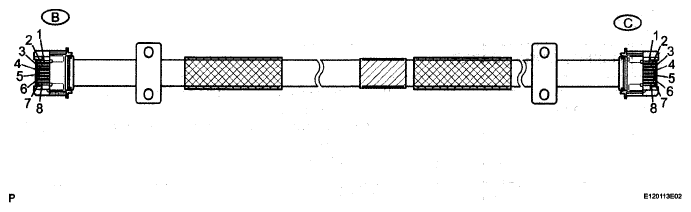

- INSPECT STEERING PAD SWITCH CABLE (w/ Navigation System)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition B-1 - C-1 Always Below 1 Ω B-2 - C-2 Always Below 1 Ω B-3 - C-3 Always Below 1 Ω B-4 - C-4 Always Below 1 Ω B-5 - C-5 Always Below 1 Ω B-6 - C-6 Always Below 1 Ω B-7 - C-7 Always Below 1 Ω B-8 - C-8 Always Below 1 Ω B-1 - Body ground Always 10 kΩ or higher B-2 - Body ground Always 10 kΩ or higher B-3 - Body ground Always 10 kΩ or higher B-4 - Body ground Always 10 kΩ or higher B-5 - Body ground Always 10 kΩ or higher B-6 - Body ground Always 10 kΩ or higher B-7 - Body ground Always 10 kΩ or higher B-8 - Body ground Always 10 kΩ or higher If the result is not as specified, replace the steering pad switch cable.
- Measure the resistance according to the value(s) in the table below.
