Home >> Toyota >> 2009 >> Sienna LE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Front Door Speaker >> Components

Front Door Speaker: Components

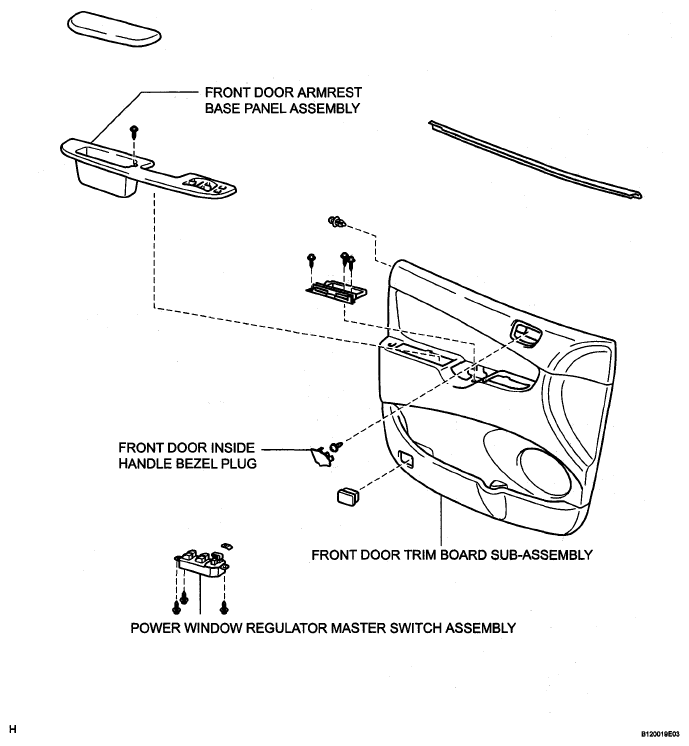

Fig 1: Identifying Front Door Speaker Replacement Components (1 Of 2)
G05141190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

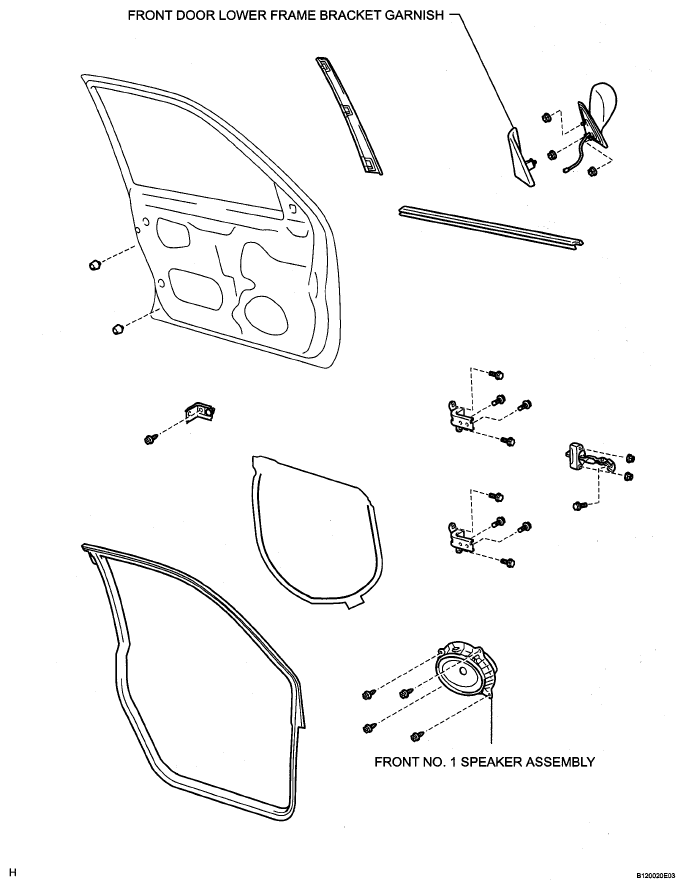

Fig 2: Identifying Front Door Speaker Components (2 Of 2)
G05141191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
