Home >> Toyota >> 2009 >> Sienna LE, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Extension Housing Oil Seal >> Components

Extension Housing Oil Seal: Components

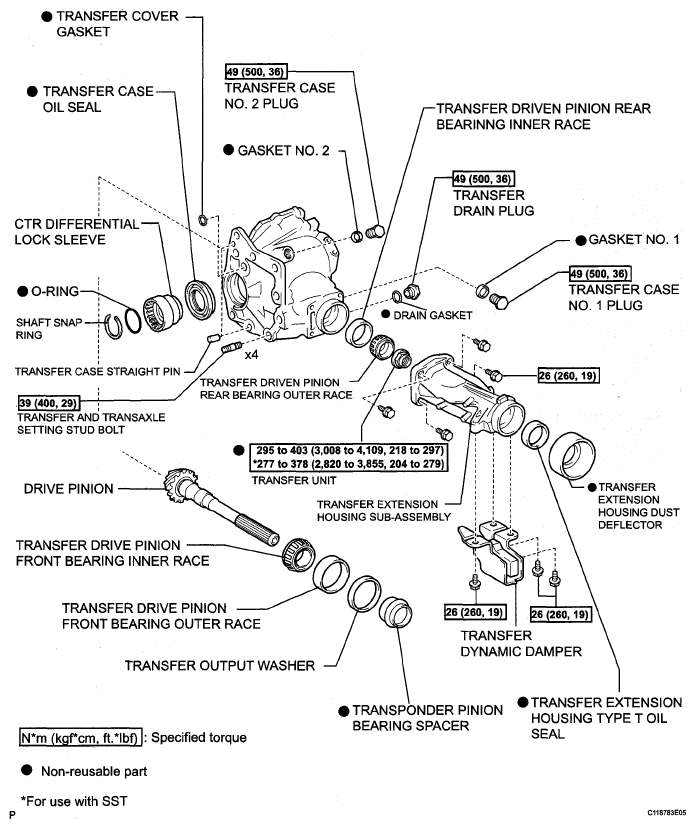

Fig 1: Extension Housing Oil Seal Replacement Components With Torque Specifications

G05139202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
