Home >> Toyota >> 2009 >> Sienna LE, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Bearing Retainer Oil Seal >> Components

Bearing Retainer Oil Seal: Components

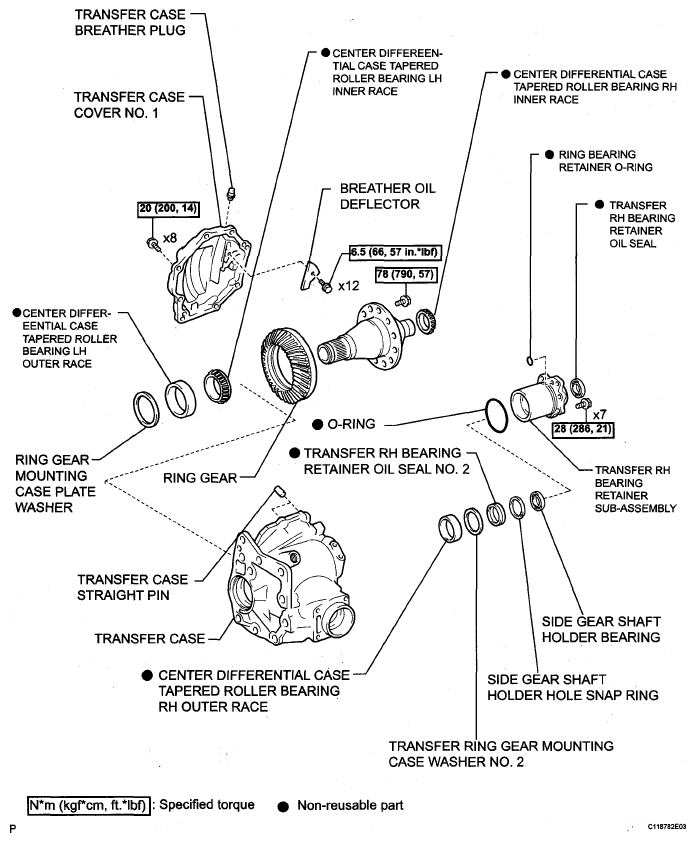

Fig 1: Bearing Retainer Oil Seal Replacement Components With Torque Specifications

G05139091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
