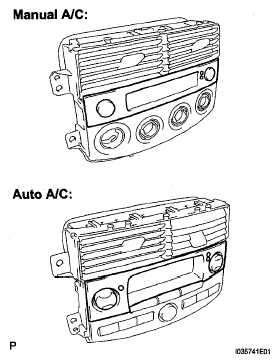

Integration Control And Panel: Disassembly

REMOVE CENTER CLUSTER MODULE KNOB NO.1 (for Manual Air Conditioning System)
1. Remove the center cluster module knob No. 1.

  Fig 1: Locating Center Cluster Module Knob No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER CLUSTER MODULE KNOB NO.2 (for Manual Air Conditioning System)
1. Release the 2 claws fittings and remove the center cluster module knob No. 2.
  NOTE: Take care not to break the claws on the knob.

  Fig 2: Locating Center Cluster Module Knob No. 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY (for Manual Air Conditioning System)
1. Remove the plate.

  Fig 3: Locating Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the lock of the connector and disconnect the cable.

  Fig 4: Locating Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 screws, and the heater control housing.

  Fig 5: Locating Screws, And Heater Control Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 4 screws, and the air conditioner amplifier assembly.

  Fig 6: Locating Screws, And Air Conditioner Amplifier Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY (for Automatic Air Conditioning System)
1. Release the 8 claw fittings and remove the 4 screws and the heater control housing.

  Fig 7: Locating Screws And Heater Control Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.

  Fig 8: Locating Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 screws and the air conditioner amplifier assembly.

  Fig 9: Locating Screws And Air Conditioner Amplifier Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CONTROL AND PANEL BULB (for Manual Air Conditioning System)
1. Remove the integration control & panel bulb.

  Fig 10: Locating Integration Control & Panel Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER BLOWER SWITCH (for Manual Air Conditioning System)
1. Remove the 3 nuts, and the 3 washers.

  Fig 11: Locating Nuts, And Washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the 6 claw fittings and remove the 5 screws and printed wire integration board sub-assembly.

  Fig 12: Locating Screws And Printed Wire Integration Board Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the screw and the heater blower switch.

  Fig 13: Locating Screw And Heater Blower Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PRINTED WIRE INTEGRATION BOARD SUB-ASSEMBLY (for Automatic Air Conditioning System)
1. Remove the 12 screws and the printed wire integration board sub-assembly.

  Fig 14: Removing Locating Screws And Printed Wire Integration Board Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLOCK ORNAMENT
1. Remove the clock ornament.
REMOVE CENTER CLUSTER MODULE KNOB NO.5 (for Automatic Air Conditioning System)
REMOVE CENTER CLUSTER MODULE KNOB NO.6 (for Automatic Air Conditioning System)
