Integration Control And Panel: Components

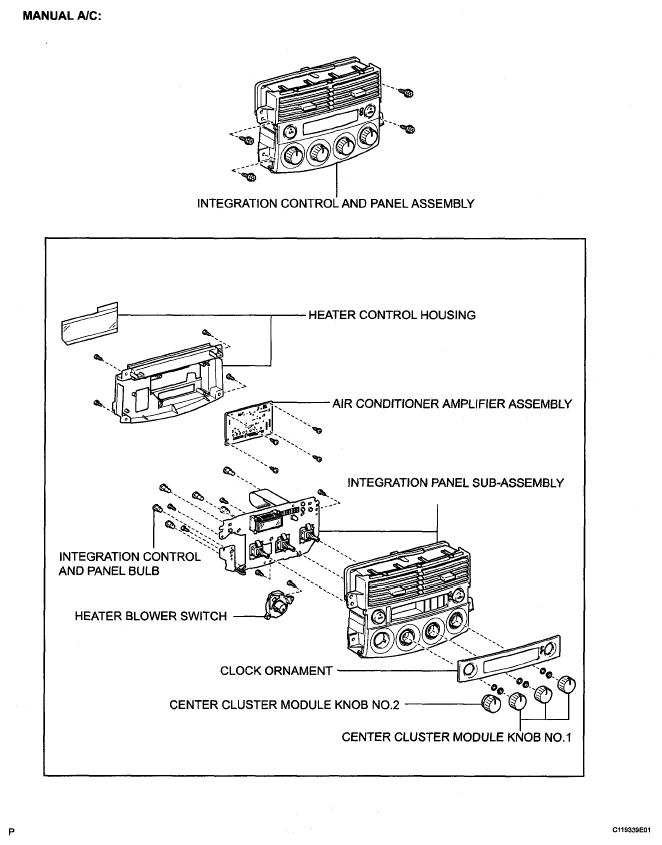

Fig 1: Identifying Integration Control And Panel Components (1 Of 2)
G05144662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

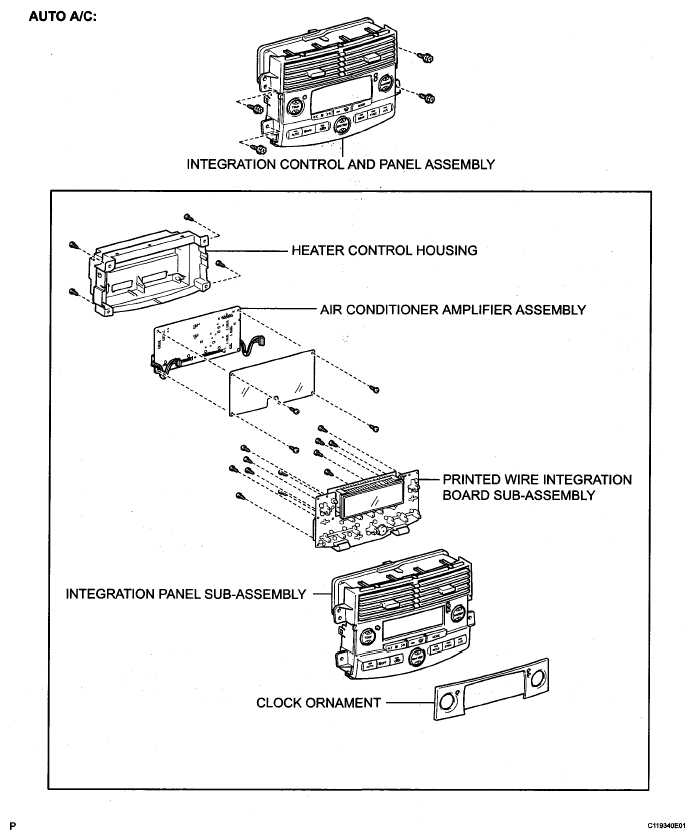

Fig 2: Identifying Integration Control And Panel Components (2 Of 2)
G05144663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
