Air Conditioning: Condenser: Components

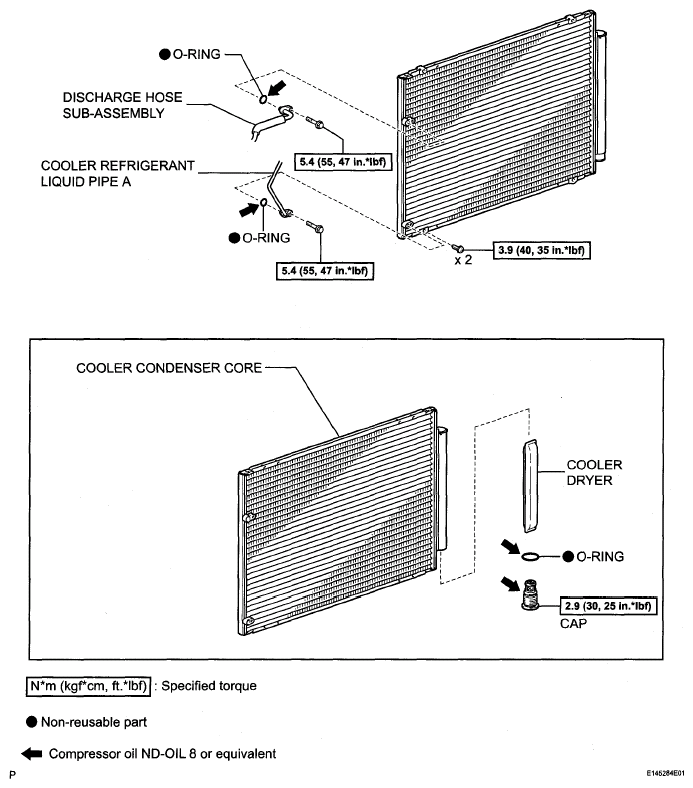

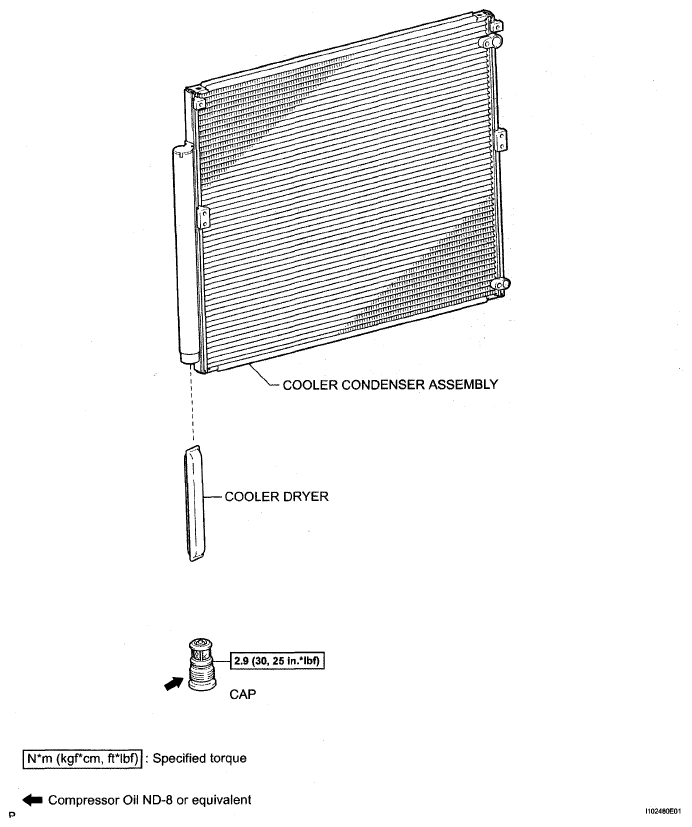

Fig 1: Condenser Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

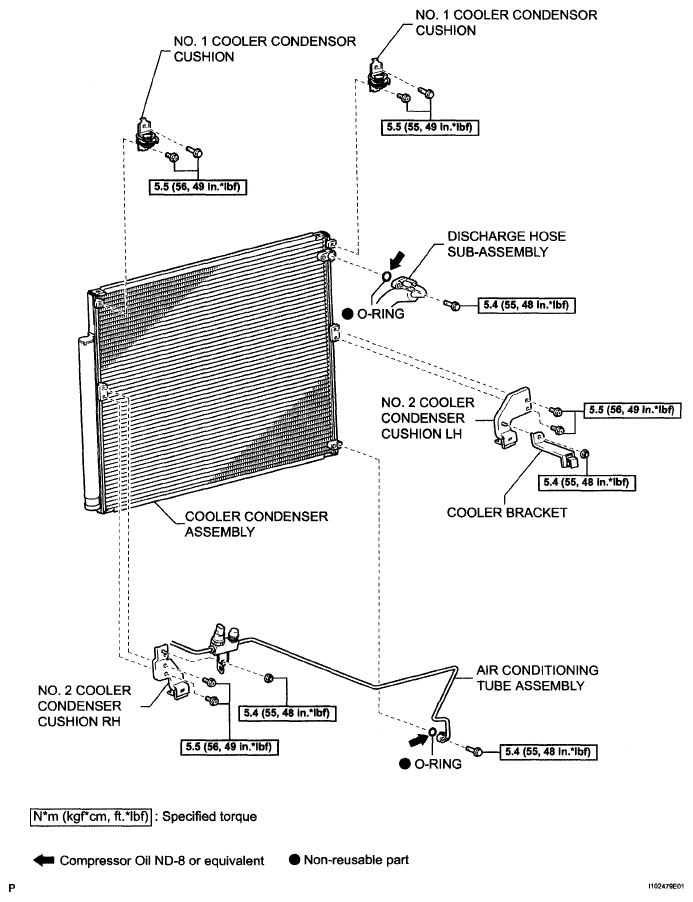

Fig 2: Condenser Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

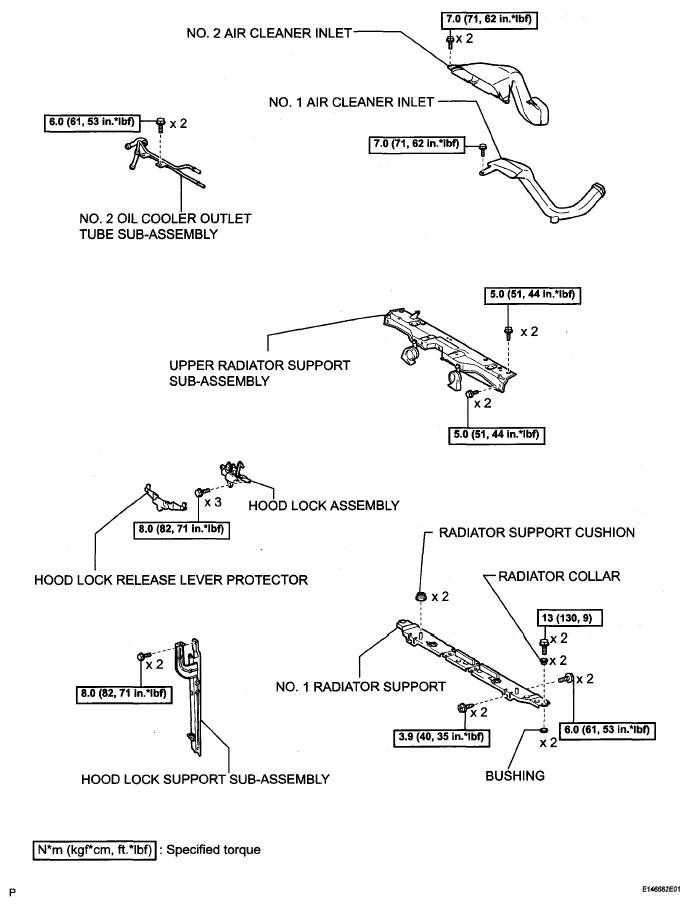

Fig 3: Condenser Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
