Air Conditioning Control Assembly: Disassembly

  1. REMOVE CONTROL KNOB SUB-ASSEMBLY (for Manual Air Conditioning System)
    1. Remove the control knob sub-assembly.
      Fig 1: Locating Control Knob Sub-Assembly
      G05144660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR CONDITIONING CONTROL BULB
    1. Remove the air conditioning control bulb.

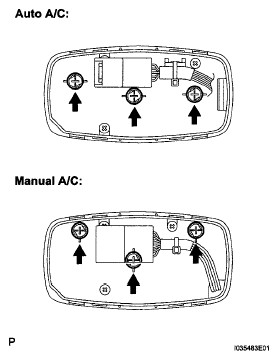

      2. Fig 2: Locating Air Conditioning Control Bulb
      G05144661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
