Only Wireless Control Function is Inoperative: Wiring Diagram

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

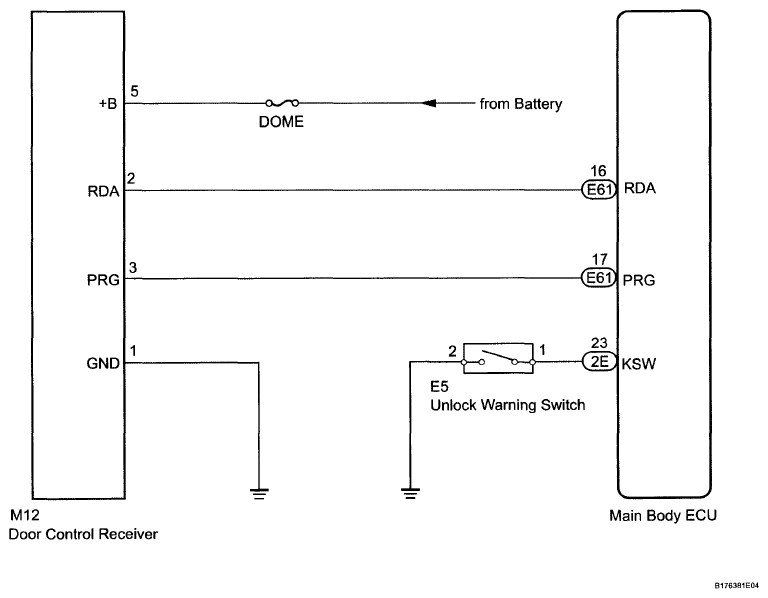

Fig 1: Door Control Receiver Receives - Wiring Diagram
G06011197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
