Unlock Warning Switch: Inspection

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      1 - 2 Switch free (Key removed) 10 kΩ or higher
      1 - 2 Switch pushed (Key set) Below 1 Ω

      If the result is not as specified, replace the unlock warning switch assembly.

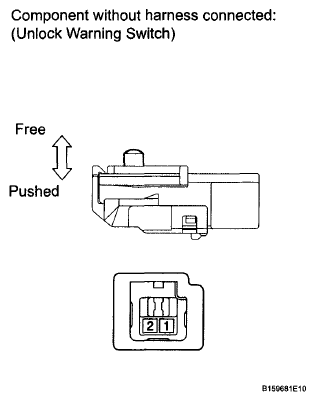

      Fig 1: Inspecting Unlock Warning Switch Assembly
      G06011269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
