Door Control Switch: Removal

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT ARMREST UPPER BASE PANEL (w/o Power Window)  (See DISASSEMBLY )
  2. REMOVE FRONT ARMREST UPPER BASE PANEL (w/ Power Window)  (See DISASSEMBLY )
  3. REMOVE DOOR CONTROL SWITCH ASSEMBLY (w/o Power Window)
    1. Using a screwdriver with the tip wrapped with protective tape, disengage the 2 claws and remove the door control switch assembly.

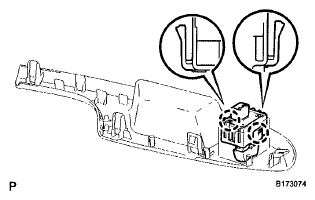

    Fig 1: Identifying Door Control Switch Claws
    G06011256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Power Window)
    1. Remove the 3 screws and the power window regulator master switch assembly.

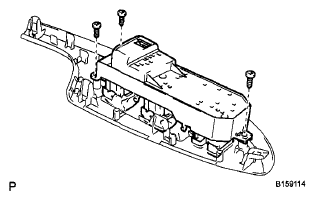

    Fig 2: Identifying Power Window Regulator Master Switch Screws
    G06016103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
