Door Control Switch: Inspection

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT POWER WINDOW MASTER SWITCH (for Driver Side with Power Window)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
1 (E) - 2 (L)	Lock	Below 1 Ω
1 (E) - 2 (L) 1 (E) - 9 (UL)	OFF (Free)	10 kΩ or higher
1 (E) - 9 (UL)	Unlock	Below 1 Ω

If the result is not specified, replace power window master switch.

Fig 1: Identifying Power Window Master Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT DOOR CONTROL SWITCH ASSEMBLY (for Driver Side without Power Window)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
3 (E) - 4 (L)	Lock	Below 1 Ω
3 (E) - 4 (L) 2 (UL) - 3 (E)	OFF (Free)	10 kΩ or higher
2 (UL) - 3 (E)	Unlock	Below 1 Ω

If the result is not specified, replace door control switch.

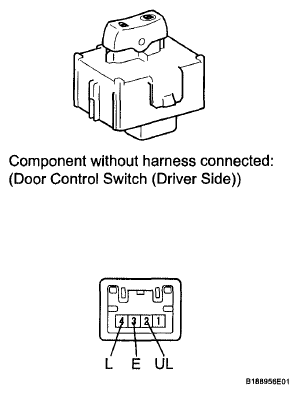

Fig 2: Identifying Door Control Switch Connector (Driver Side)

INSPECT DOOR CONTROL SWITCH ASSEMBLY (for Front Passenger Side)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
3 (E) - 4 (L)	Lock	Below 1 Ω
3 (E) - 4 (L) 2 (UL) - 3 (E)	OFF (Free)	10 kΩ or higher
2 (UL) - 3 (E)	Unlock	Below 1 Ω

If the result is not specified, replace door control switch.

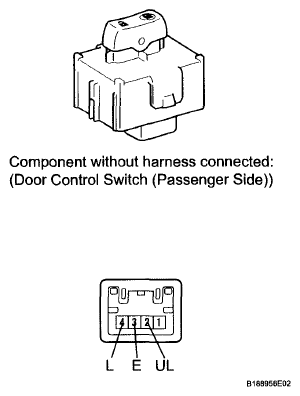

Fig 3: Identifying Door Control Switch Connector (Passenger Side)
