Door Control Receiver: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DOOR CONTROL RECEIVER
1. Install the door control receiver with the bolt.
2. Connect the connector.
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side (See INSTALLATION ).
INSTALL ROOF SIDE INNER GARNISH BOARD RH
HINT:

Use the same procedure for the RH side and the LH side (See INSTALLATION ).

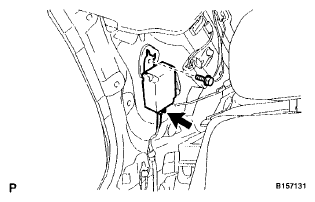

Fig 1: Identifying Door Control Receiver With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side (See INSTALLATION ).
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH (See INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side (See INSTALLATION ).
