Front Door Speaker: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT NO. 3 SPEAKER ASSEMBLY (w/ Front No. 3 Speaker)
1. Engage the clamp and install the front No. 3 speaker assembly.
2. Install the screw.
3. Connect the connector.
Fig 1: Locating Front No. 3 Speaker Assembly Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (w/ Front No. 2 Speaker)
1. Engage the 3 claws and install the front No. 2 speaker assembly.
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH (w/ Front No. 2 Speaker) (See REASSEMBLY )

Fig 2: Identifying Claws On Front No. 2 Speaker Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
1. Using an air riveter or hand riveter, install the front No. 1 speaker assembly with 3 new rivets.

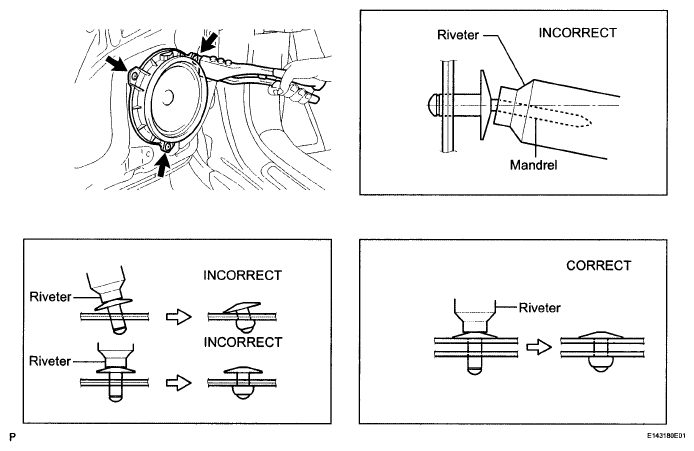

  Fig 3: Installing Front No. 1 Speaker Assembly With Rivets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
  - Confirm that the rivet is seated properly against the moulding. Do not tilt the riveter when installing the rivet to the moulding. Do not leave any space between the rivets head and moulding.
  - Do not leave any space between the moulding and door frame. Firmly hold the 2 items together while installing the rivet.
  HINT:

  If the rivet cannot be cut, pull it once and cut it.
2. Connect the connector.
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL FRONT ARMREST UPPER BASE PANEL (w/ o Power Window) (See REASSEMBLY )
INSTALL FRONT ARMREST UPPER BASE PANEL (w/ Power Window) (See REASSEMBLY )
INSTALL FRONT DOOR INSIDE HANDLE BEZEL (See REASSEMBLY )

Fig 4: Locating Front No. 1 Speaker Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) (See REASSEMBLY )
