Inspection Procedure

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connector.
    2. Measure the voltage according to the value(s) in the table below.

    Standard Voltage

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    E104-3 (MACC) - Body ground Ignition switch ON 4 to 6 V
    E104-1 (SNS2) - Body ground Ignition switch ON 4 to 6 V

    NG: REPLACE RADIO RECEIVER  (See REMOVAL )

    Fig 1: Identifying Radio Receiver Connector Terminals
    G06010528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (MICROPHONE - RADIO RECEIVER)
    1. Disconnect the microphone connector and the radio receiver connector.
      Fig 2: Identifying Radio Receiver Connector Terminals
      G06010529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:

      w/ Sliding Roof

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      O10-9 (SNS2) - E104-1 (SNS2) Always Below 1 Ω
      O10-11 (MI1+) - E104-2 (MIC+) Always Below 1 Ω
      O10-10 (MIC-) - E104-5 (MIC-) Always Below 1 Ω
      O10-12 (ACC) - E104-3 (MACC) Always Below 1 Ω
      O10-9 (SNS2) - Body ground Always 10 kΩ or higher
      O10-11 (MI1+) - Body ground Always 10 kΩ or higher
      O10-10 (MIC-) - Body ground Always 10 kΩ or higher
      O10-12 (ACC) - Body ground Always 10 kΩ or higher

      w/o Sliding Roof

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      O9-3 (SNS2) - E104-1 (SNS2) Always Below 1 Ω
      O9-2 (MIC+) - E104-2 (MIC+) Always Below 1 Ω
      O9-4 (MIC-) - E104-5 (MIC-) Always Below 1 Ω
      O9-1 (MACC) - E104-3 (MACC) Always Below 1 Ω
      O9-3 (SNS2) - Body ground Always 10 kΩ or higher
      O9-2 (MIC+) - Body ground Always 10 kΩ or higher
      O9-4 (MIC-) - Body ground Always 10 kΩ or higher
      O9-1 (MACC) - Body ground Always 10 kΩ or higher

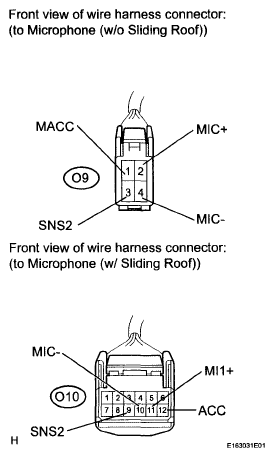

      Fig 3: Identifying Microphone Connector Terminals
      G06010530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )
