Inspection Procedure

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - BATTERY)
    1. Disconnect the A1 connector from the stop light switch.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      A1-2 - Body ground Always 11 to 14 V
      A1-3 - Body ground Ignition switch ON 11 to 14 V

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

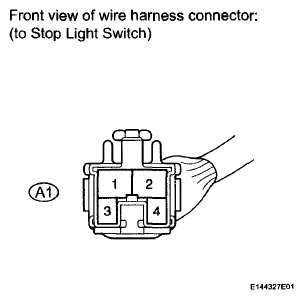

    Fig 1: Identifying Terminals Of A1 Stop Light Switch Connector
    G06009671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  2. INSPECT STOP LIGHT SWITCH
    1. Remove the stop light switch (See STOP LIGHT SWITCH ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      1-2 Switch pin not pushed Below 1 Ω
      3-4 Switch pin not pushed 10 kΩ or higher
      1-2 Switch pin pushed 10 kΩ or higher
      3-4 Switch pin pushed Below 1 Ω
    3. Install the stop light switch (See INSPECTION ).

    NG : REPLACE STOP LIGHT SWITCH  (See STOP LIGHT SWITCH )

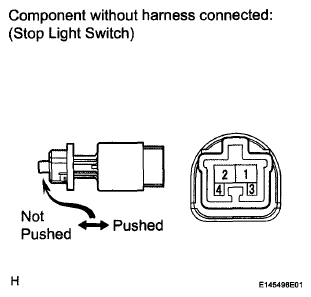

    Fig 2: Identifying Terminals Of Stop Light Switch Connector
    G06009672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  3. CHECK ECM
    1. Reconnect the stop light switch connector.
    2. Disconnect the A50 connector from the ECM.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      A50-36 (STP) - Body ground Brake pedal depressed 11 to 14 V
      A50-36 (STP) - Body ground Brake pedal released Below 1 V
      A50-35 (ST1-) - Body ground Brake pedal depressed Below 1 V
      A50-35 (ST1-) - Body ground Brake pedal released 11 to 14 V

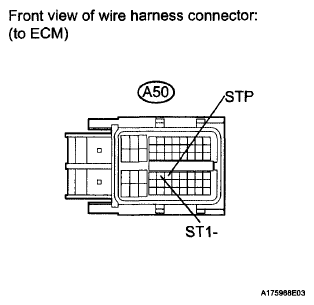

      Fig 3: Identifying Terminals Of A50 ECM Connector
      G06009673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Result Proceed to
      NG A
      OK (for 2ZR-FE) B
      OK (for 2AZ-FE) C

    B : REPLACE ECM (for 2ZR-FE)  (See ECM )

    C : REPLACE ECM (for 2AZ-FE)  (See ECM )

    A : REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH - ECM)
