Front Suspension Member: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

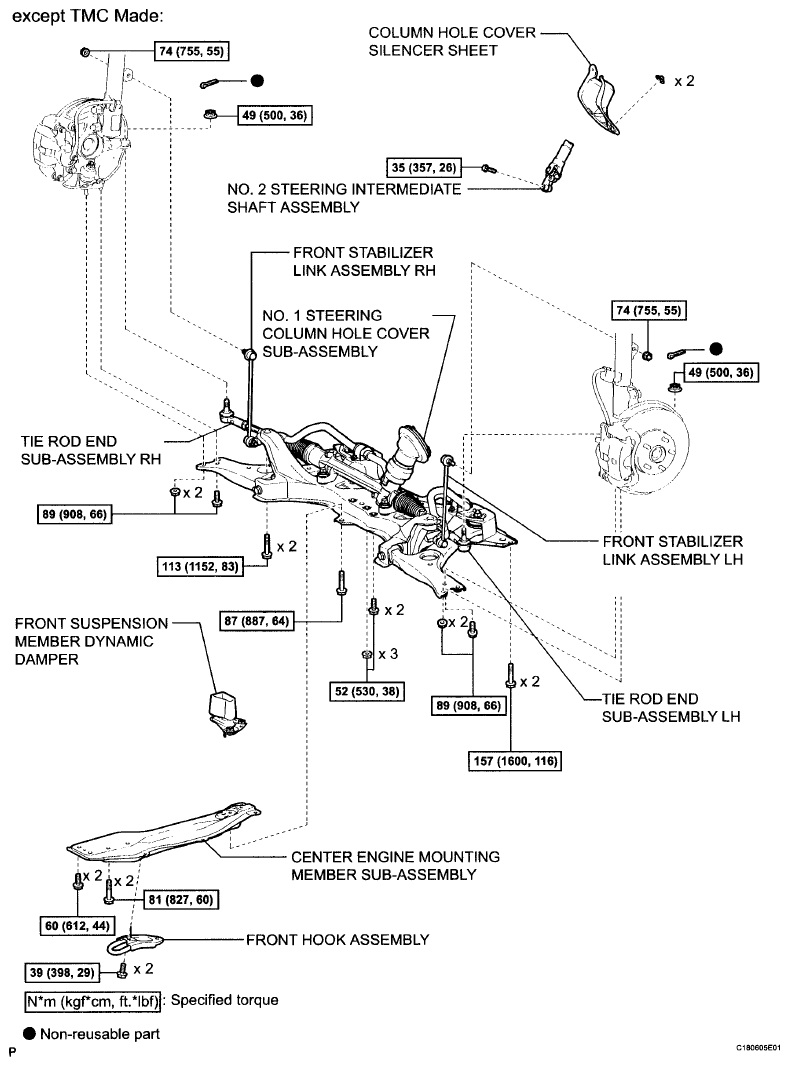

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

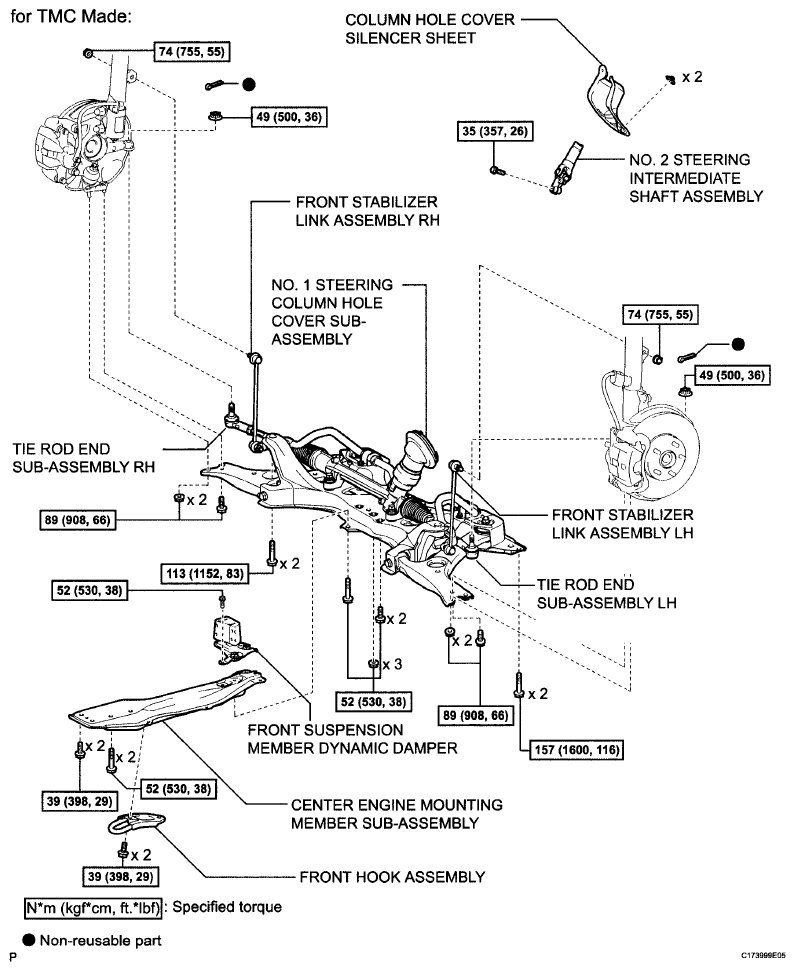

Fig 2: Front Suspension Member Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

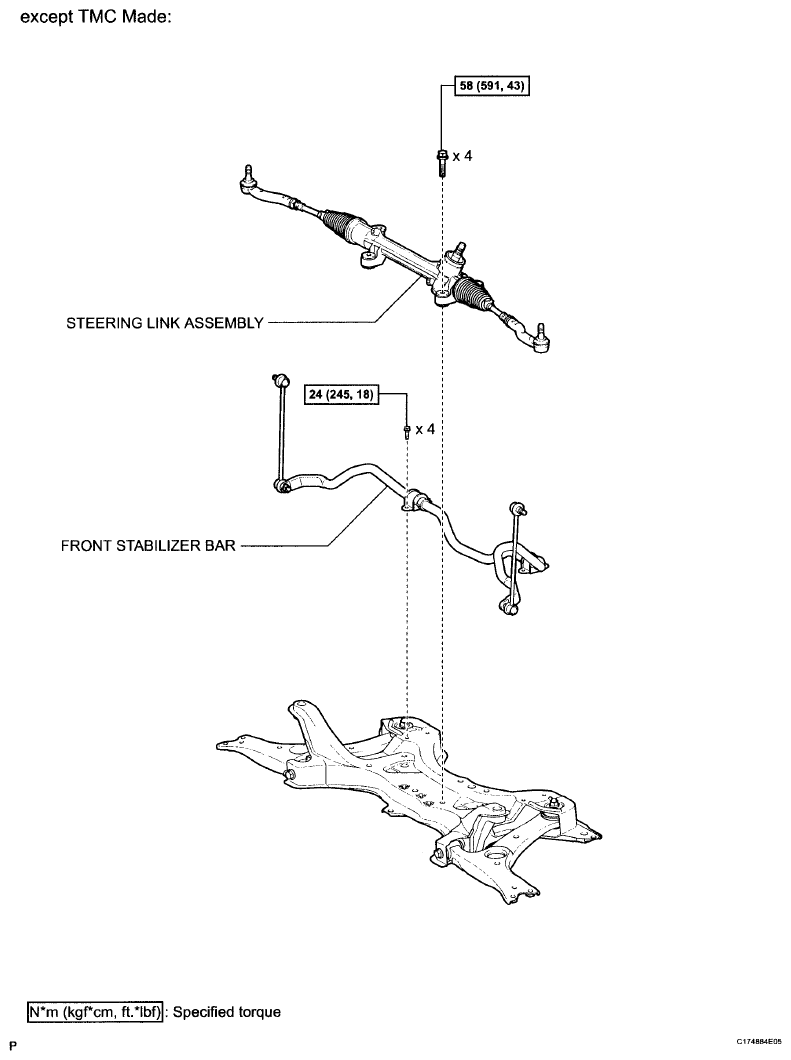

Fig 3: Front Suspension Member Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

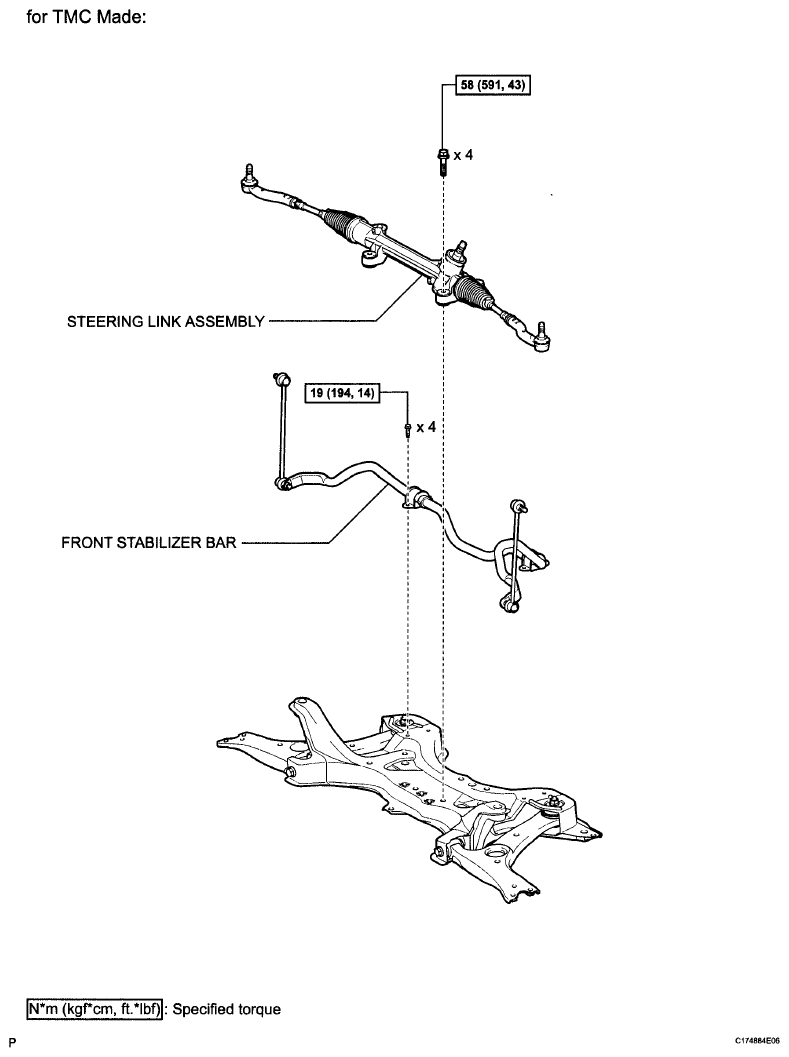

Fig 4: Front Suspension Member Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Front Suspension Member Replacement Components With Torque Specifications (5 Of 6)

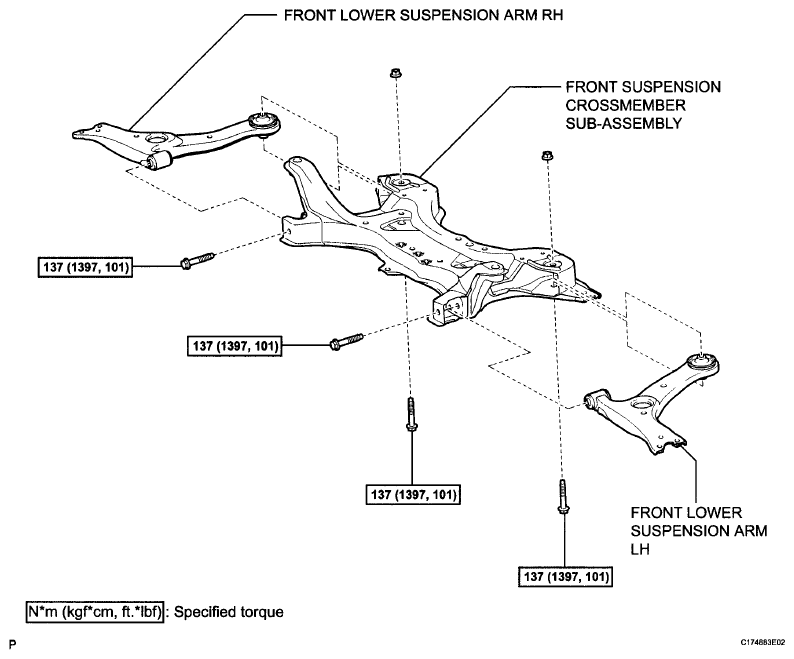

Fig 6: Front Suspension Member Replacement Components With Torque Specifications (6 Of 6)
