Front Strut Bar: Disposal

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

DISPOSE OF FRONT STRUT BAR
1. Fully extend the front strut bar.
2. Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.
A to B: 10 mm (0.394 in.)
NOTE:
- Always use proper safety equipment and be careful when drilling because shards of metal fly about.
- The gas is colorless, odorless and non-poisonous.

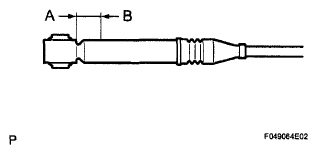

Fig 1: Identifying Front Strut Bar Hole Dimension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
