Front Strut Bar: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 4)
G06013560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

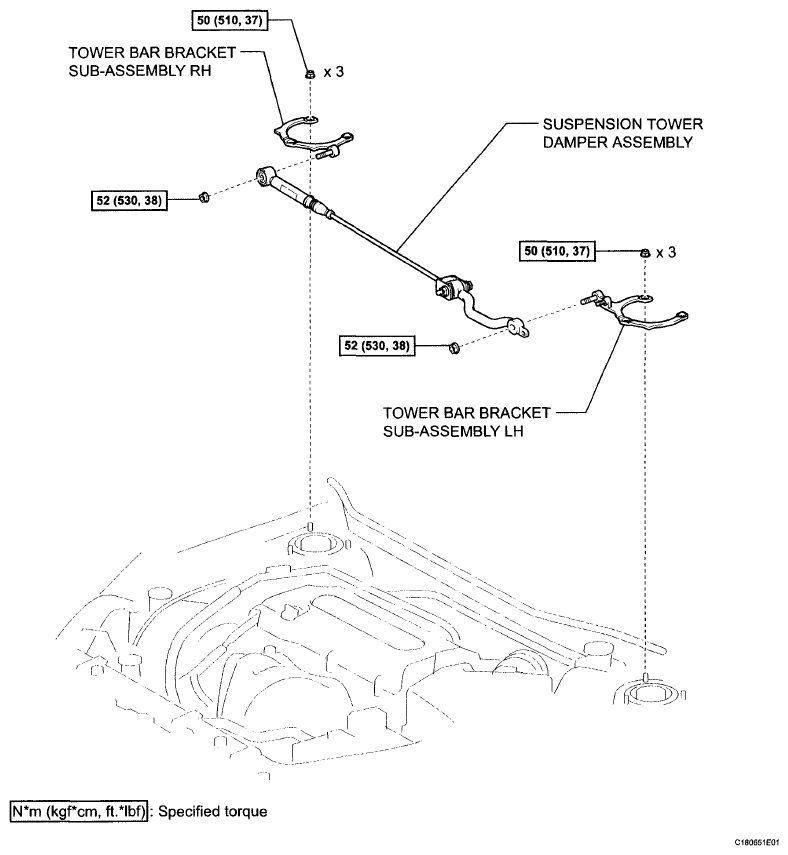

Fig 2: Front Strut Bar Replacement Components With Torque Specifications (2 Of 2)
G06013561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
