Front Lower Ball Joint: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

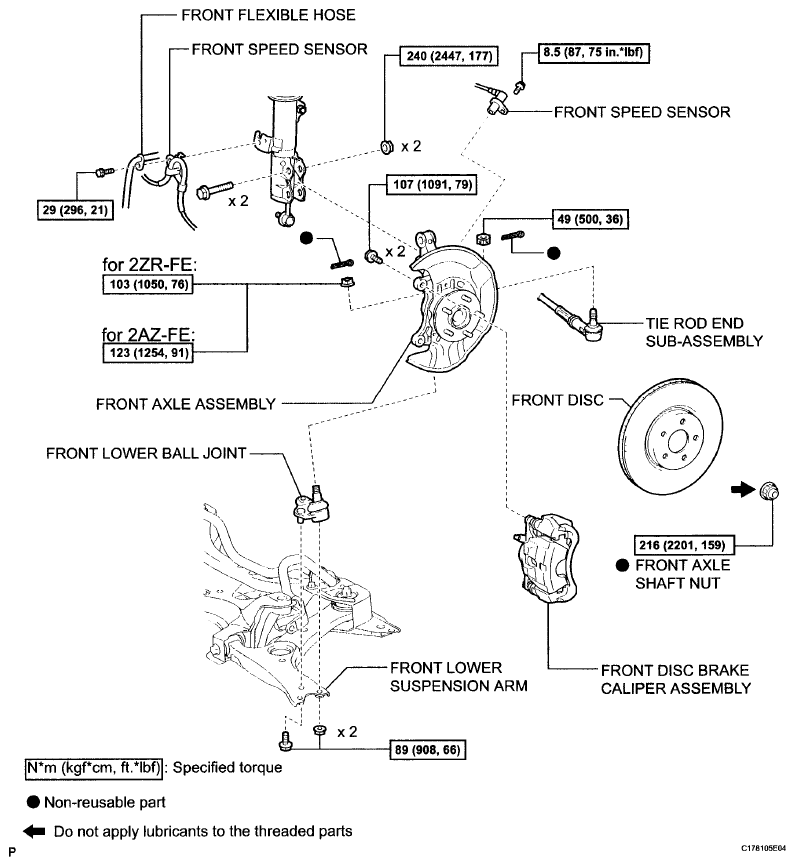

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications
G06013626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
