Washer Level Warning Switch: Inspection

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT LEVEL WARNING SWITCH ASSEMBLY

Remove the washer jar.
Disconnect the level warning switch connector.
HINT:

The check should be performed with the level warning switch assembly installed to the washer jar.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1 (SLR1) - 2 (E)	Washer jar is full	10 kΩ or higher
1 (SLR1) - 2 (E)	Washer jar is empty	Below 1 Ω

If the result is not as specified, replace the level warning switch assembly.

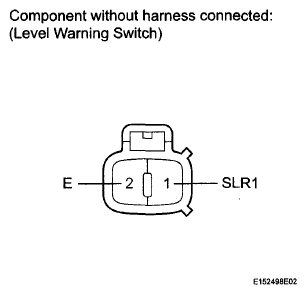

Fig 1: Identifying Level Warning Switch Connector Terminals
