Front Wiper Motor: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

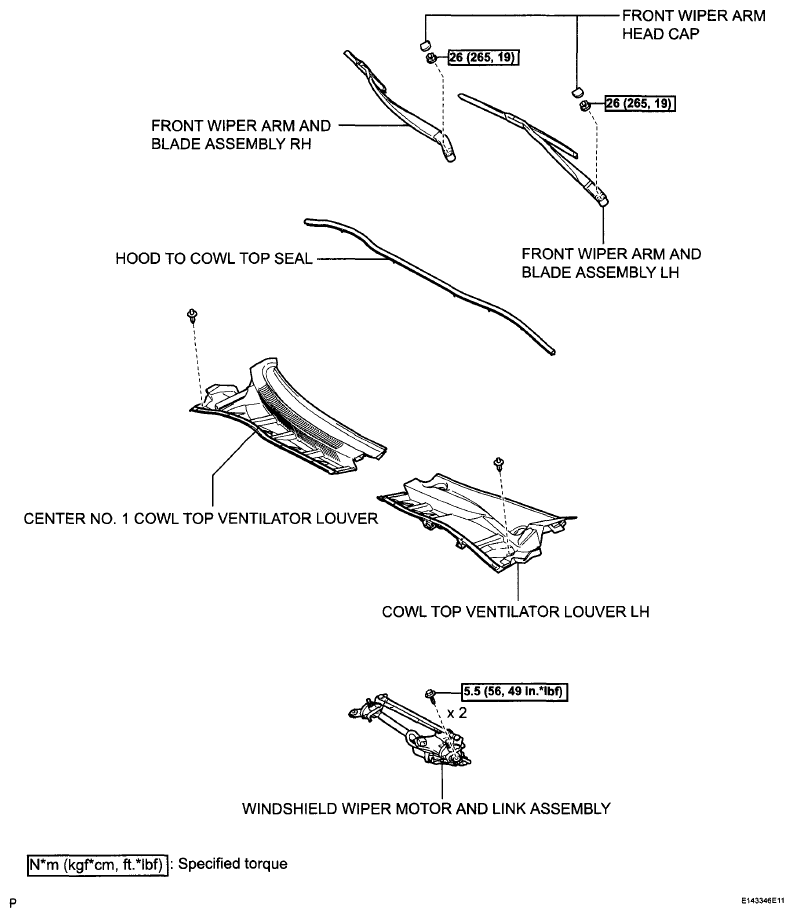

Fig 1: Identifying Front Wiper Motor Components (1 Of 2)
G06016595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

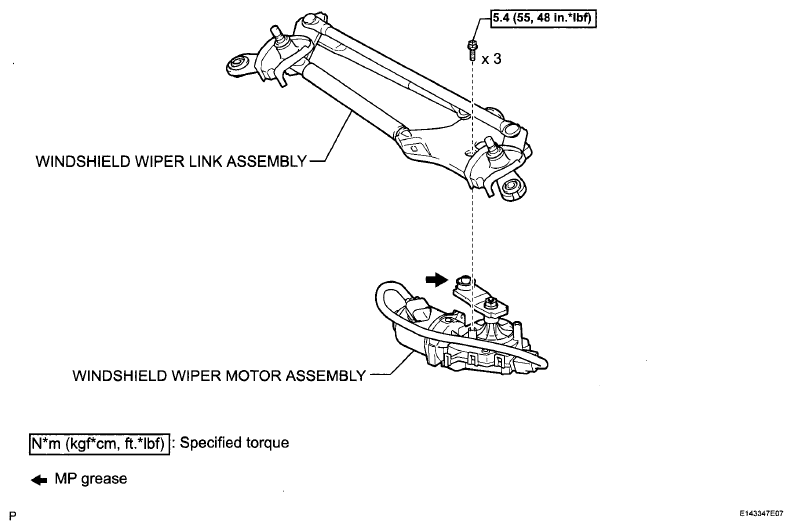

Fig 2: Identifying Front Wiper Motor Components (2 Of 2)
G06016596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
