Side Airbag Sensor: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

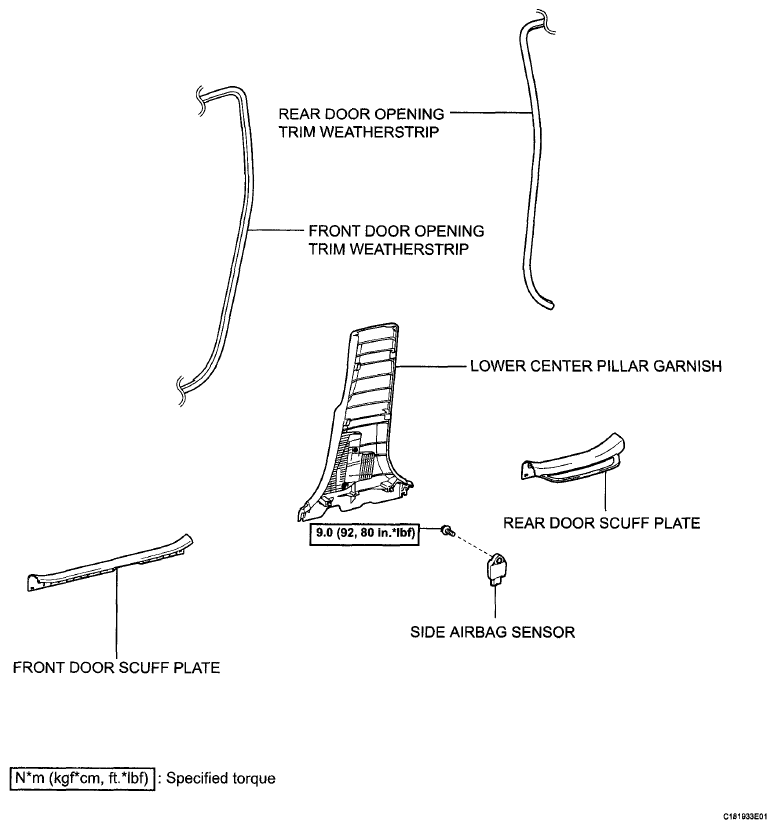

Fig 1: Side Airbag Sensor Replacement Components With Torque Specifications
G06014931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
