INSTALL SEAT POSITION SENSOR (for Manual Seat)
1. Install the seat position sensor to the seat slide position sensor protector with the pin as shown in the illustration.

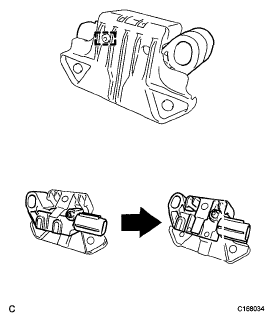

  Fig 1: Installing Seat Position Sensor (For Manual Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position sensor with seat slide position sensor protector.
  NOTE:
  - If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
  - When installing the seat position sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
  Fig 2: Locating Seat Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Be sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2.0 mm (0.0787 in.).
3. Using a "TORX" socket wrench (T30), tighten the "TORX" screw to install the seat position sensor with seat slide position sensor protector.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
4. Make sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2.0 mm (0.0787 in.).
5. Connect the connector.
6. Check that there are no loose parts after installing the seat position sensor.
Fig 3: Locating Seat Position Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT POSITION SENSOR (for Power Seat)
1. Install the seat position sensor to the seat slide position sensor protector with the pin as shown in the illustration.

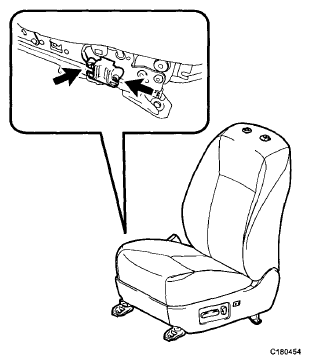

  Fig 4: Installing Seat Position Sensor (For Power Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position sensor with seat slide position sensor protector.
  NOTE:
  - If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.

    Fig 5: Locating Seat Position Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - When installing the seat position sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
  HINT:

  Be sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2.0 mm (0.0787 in.).
3. Using a "TORX" socket wrench (T30), tighten the "TORX" screw to install the seat position sensor with seat slide position sensor protector.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
4. Make sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2.0 mm (0.0787 in.).
5. Connect the connector.
6. Check that there are no loose parts after installing the seat position sensor.
INSTALL FRONT SEAT CUSHION SHIELD (for Manual Seat) (See REASSEMBLY )
INSTALL VERTICAL ADJUSTING HANDLE (for Manual Seat) (See REASSEMBLY )
INSTALL VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat) (See REASSEMBLY )
INSTALL RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat) (See INSTALLATION )
INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
1. Install the front seat assembly (See INSTALLATION ).
Fig 6: Locating Seat Slide Position Sensor Protector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
1. Install the front seat assembly (See INSTALLATION ).
