Rear Airbag Sensor: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 2)
G06014934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

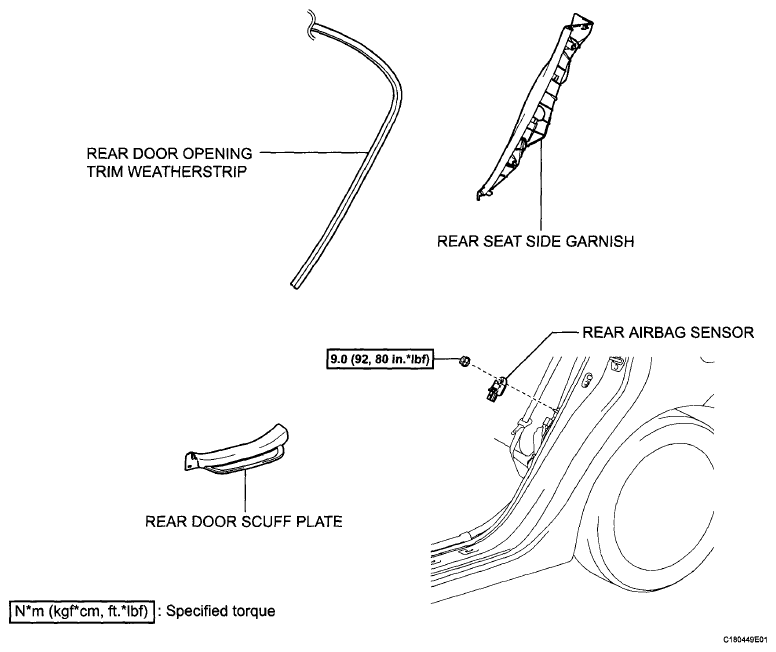

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
G06014935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
