Center Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

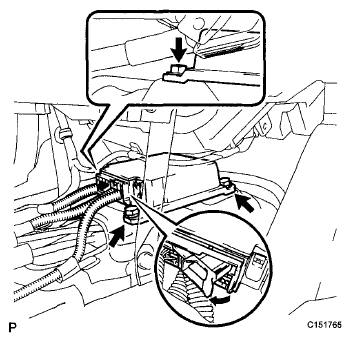

      Fig 1: Locating Center Airbag Assembly And Bolt
      G06014925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the center airbag sensor assembly with the 3 bolts.

      SST 09961-01270

      Torque: without SST

      18 N*m (184 kgf*cm, 13 ft.*lbf)

      with SST

      11 N*m (112 kgf*cm, 8 ft.*lbf)

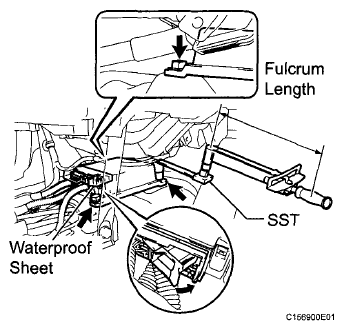

      Fig 2: Identifying Fulcrum Length
      G06014926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
      • This torque value is effective when SST is parallel to a torque wrench.
      • If the center airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the center airbag sensor assembly, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
      • When the ignition switch is first turned to ON after the center airbag sensor assembly has been replaced, make sure that no one is in the vehicle.
    4. Connect the holder (with connectors).
      NOTE: When connecting the airbag connector, take care not to damage the airbag wire harness.
    5. Check that there is no looseness in the installation parts of the center airbag sensor assembly.
    6. Check that the waterproof sheet is properly set.
  2. INSTALL CONSOLE BOX ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  3. INSTALL CONSOLE BOX ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  4. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  7. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  8. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  (See INSTALLATION )
  9. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  10. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  (See INSTALLATION )
  14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  (See INSTALLATION )
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  16. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
