How To Determine Nut Strength

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Nut Type

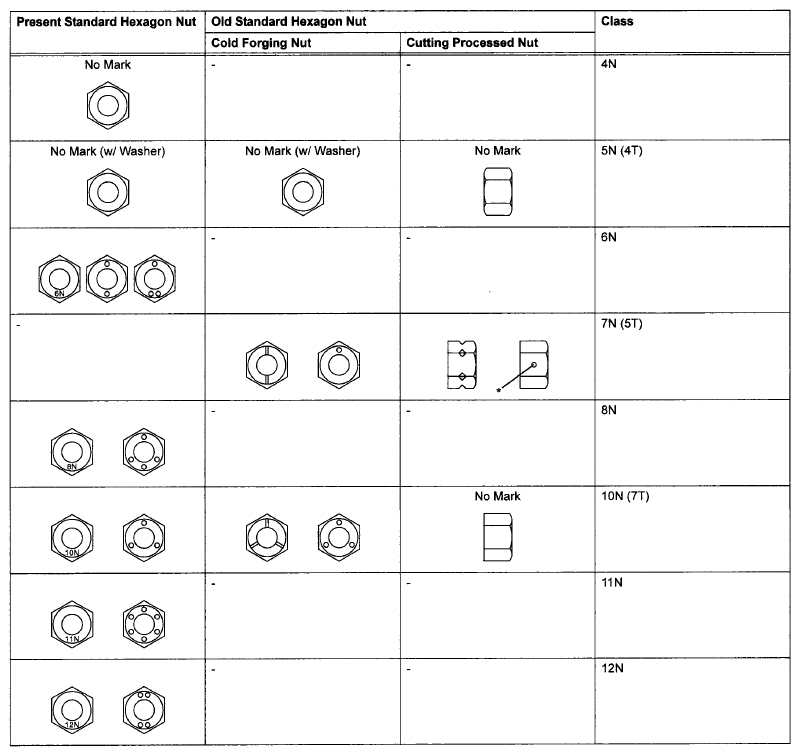

Fig 1: Nut Specification Chart
G06007254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Example:
