DTC P0617 Starter Relay Circuit High: Wiring Diagram

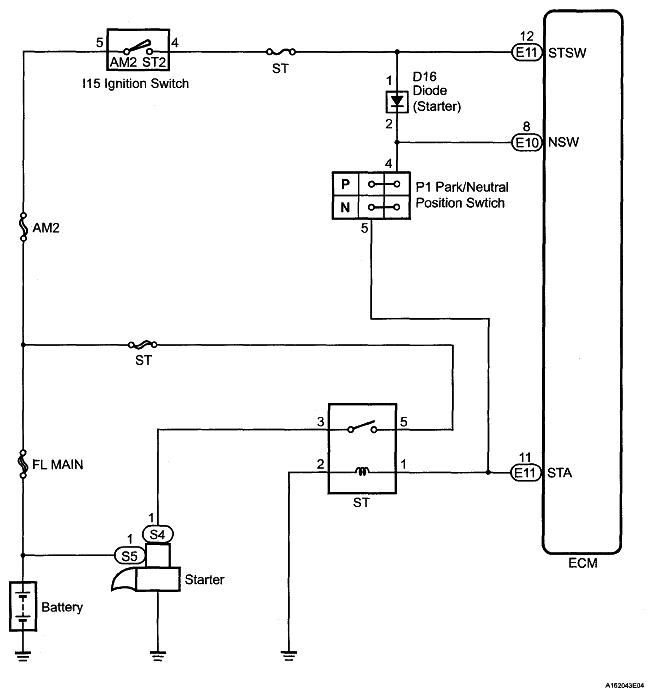

Fig 1: Ignition Switch - Wiring Diagram

G05675573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
