Purge Valve: Inspection

INSPECT PURGE VSV

Measure the resistance of the purge VSV.

Standard resistance

RESISTANCE REFERENCE CHART

Tester Connection	Specified Condition
1 - 2	23 to 26 Ω at 20°C (68°F)
1 - Body ground 2 - Body ground	10 MΩ or higher

If the result is not as specified, replace the purge VSV.

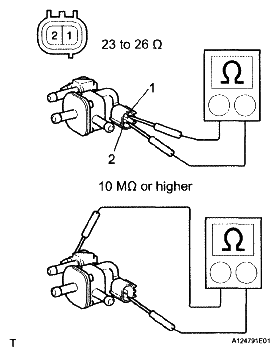

Fig 1: Measuring Resistance Of Purge VSV

G04975115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the operation of the purge VSV.
1. Check that air does not flow from port E to port F.

  Fig 2: Checking Operation Of Purge VSV
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage across the terminals.
3. Check that air flows from port E to port F. If the result is not as specified, replace the purge VSV.

  Fig 3: Checking Air Flows From Port E To Port F
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
