Manual Air Conditioning (Rear): Notes

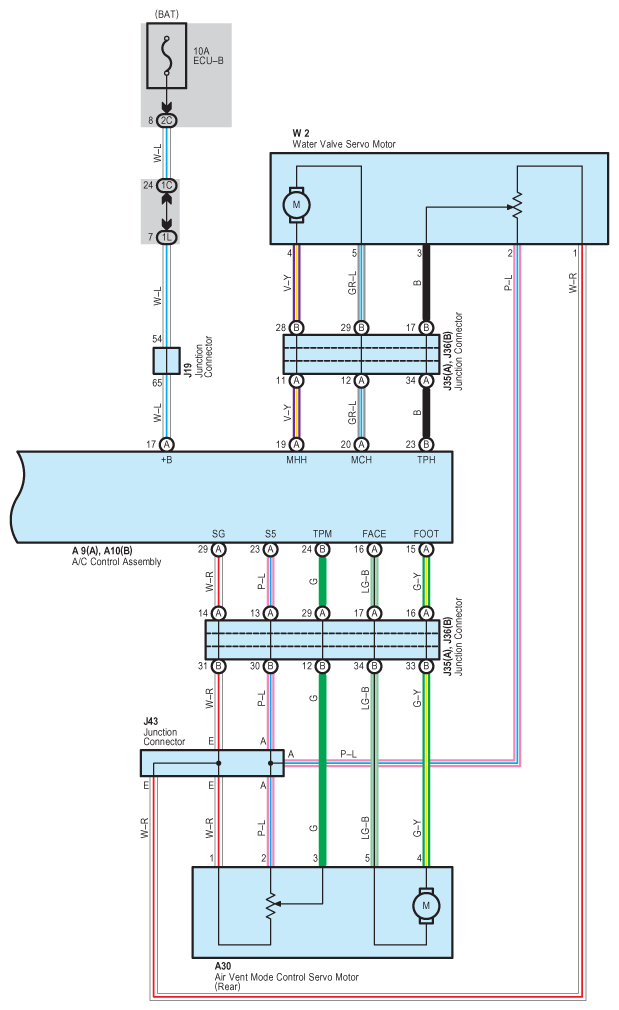

Fig 1: Manual Air Conditioning (Rear) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

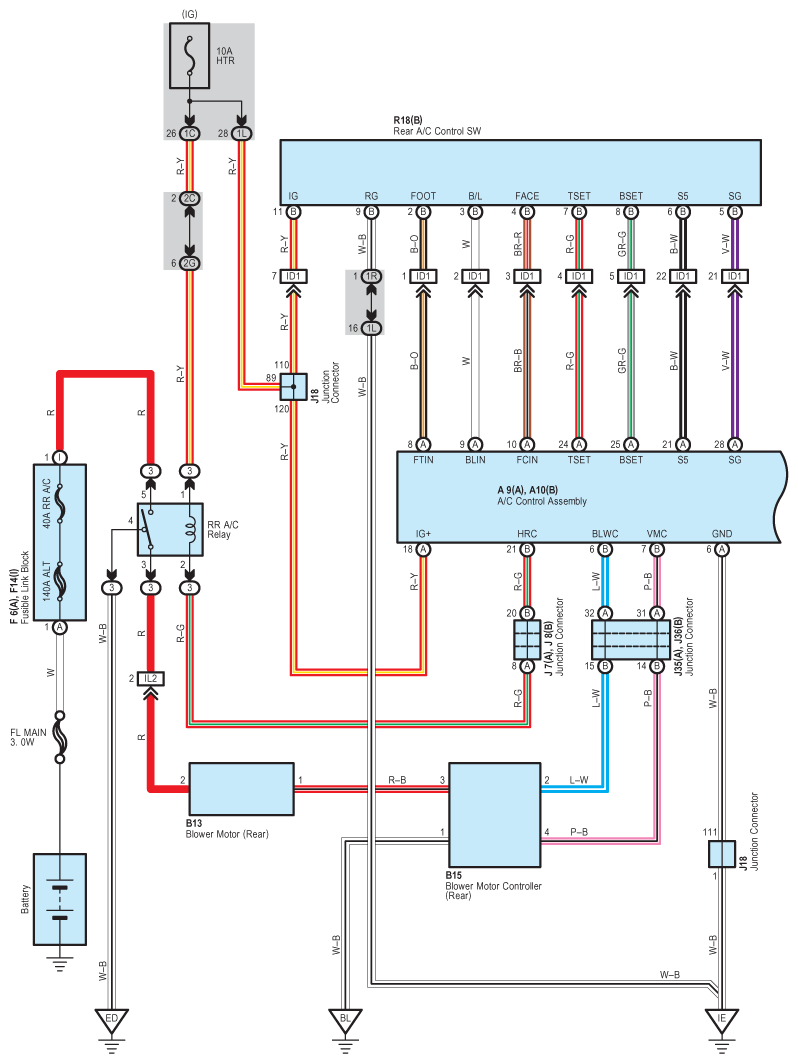

Fig 2: Manual Air Conditioning (Rear) - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
