Back Door Closer: Notes

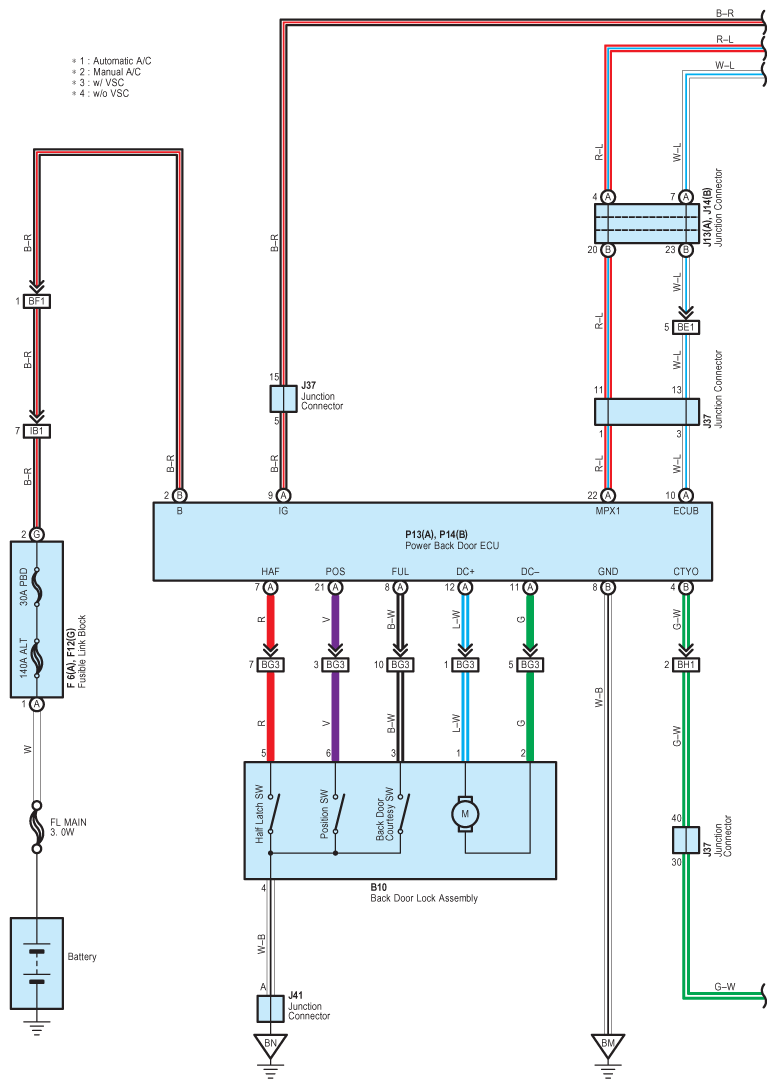

Fig 1: Back Door Closer - Circuit Diagram (1 Of 4)
G07609438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

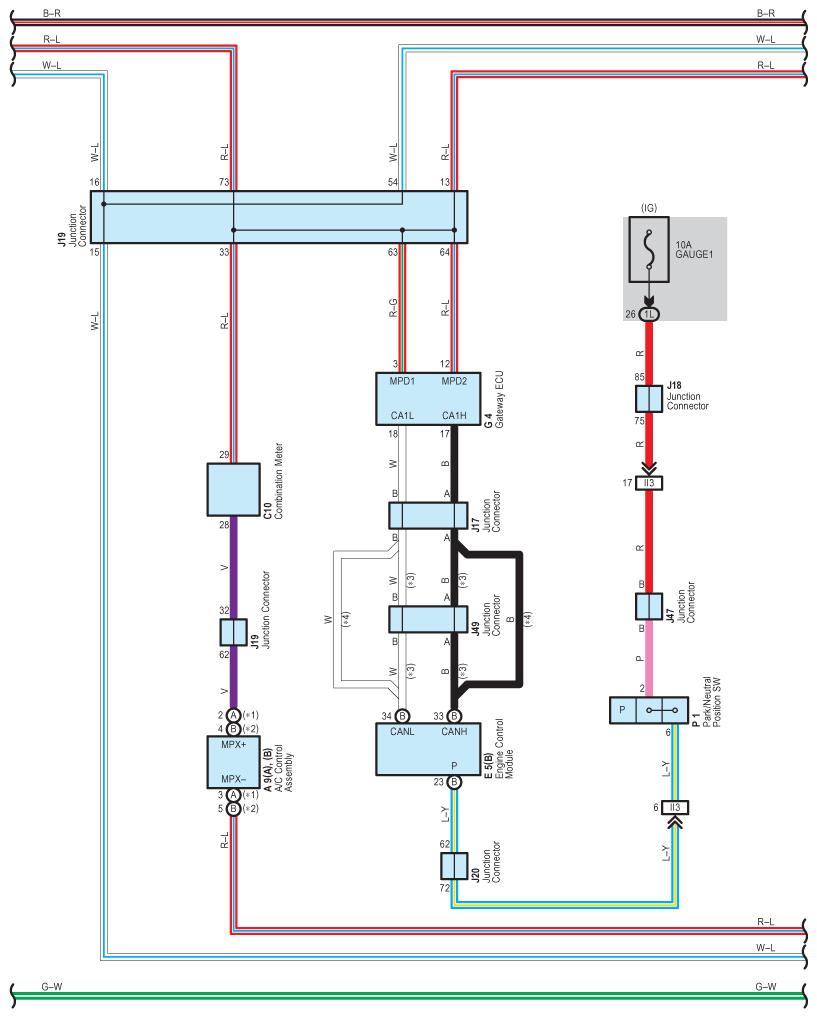

Fig 2: Back Door Closer - Circuit Diagram (2 Of 4)
G07609439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

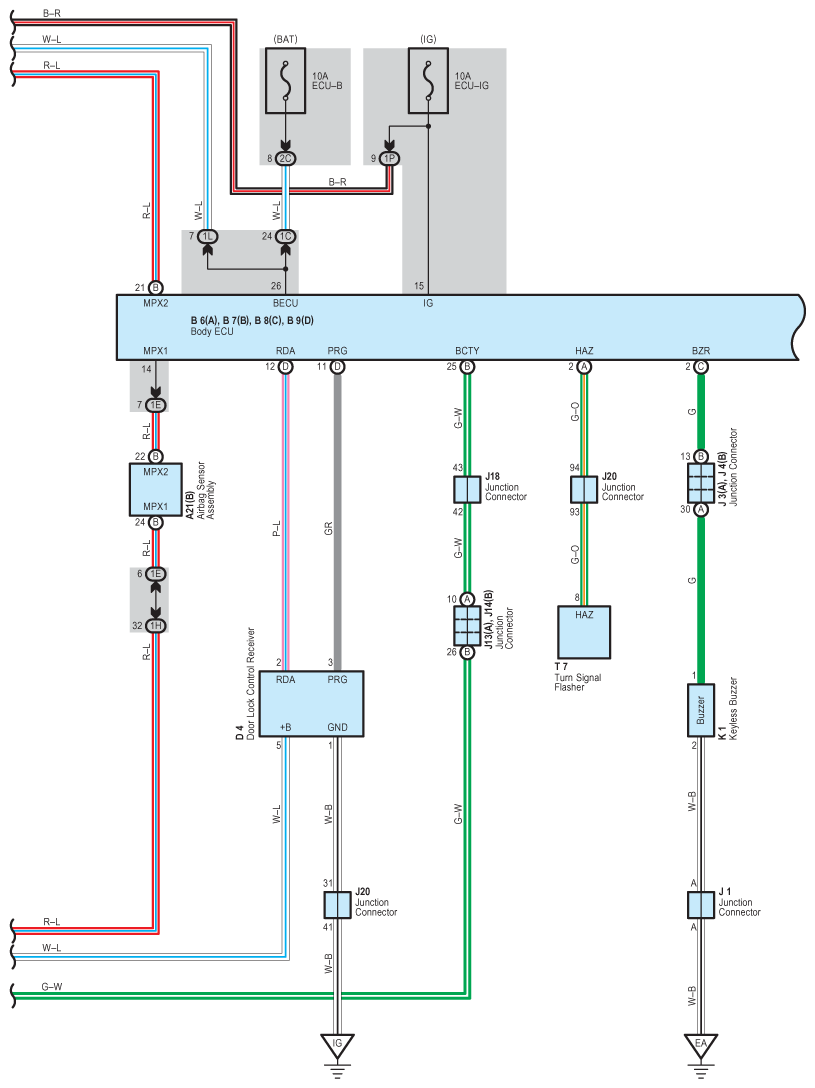

Fig 3: Back Door Closer - Circuit Diagram (3 Of 4)
G07609440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

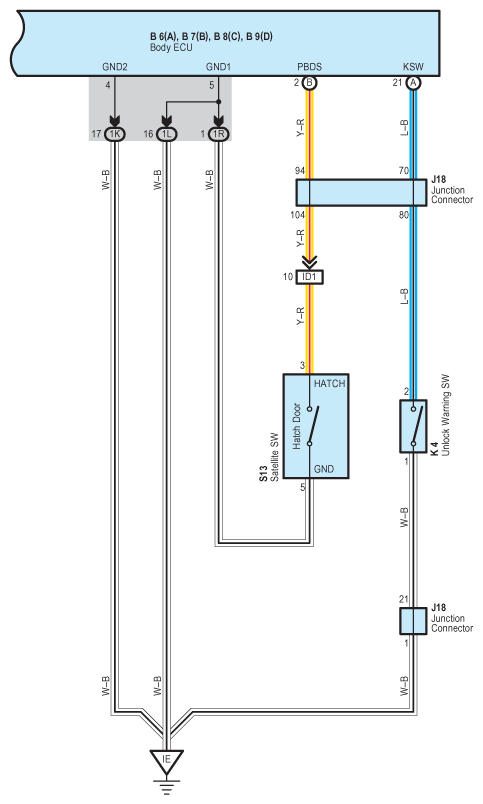

Fig 4: Back Door Closer - Circuit Diagram (4 Of 4)
G07609441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
