Accessory Meter and Garage Door Opener: Notes

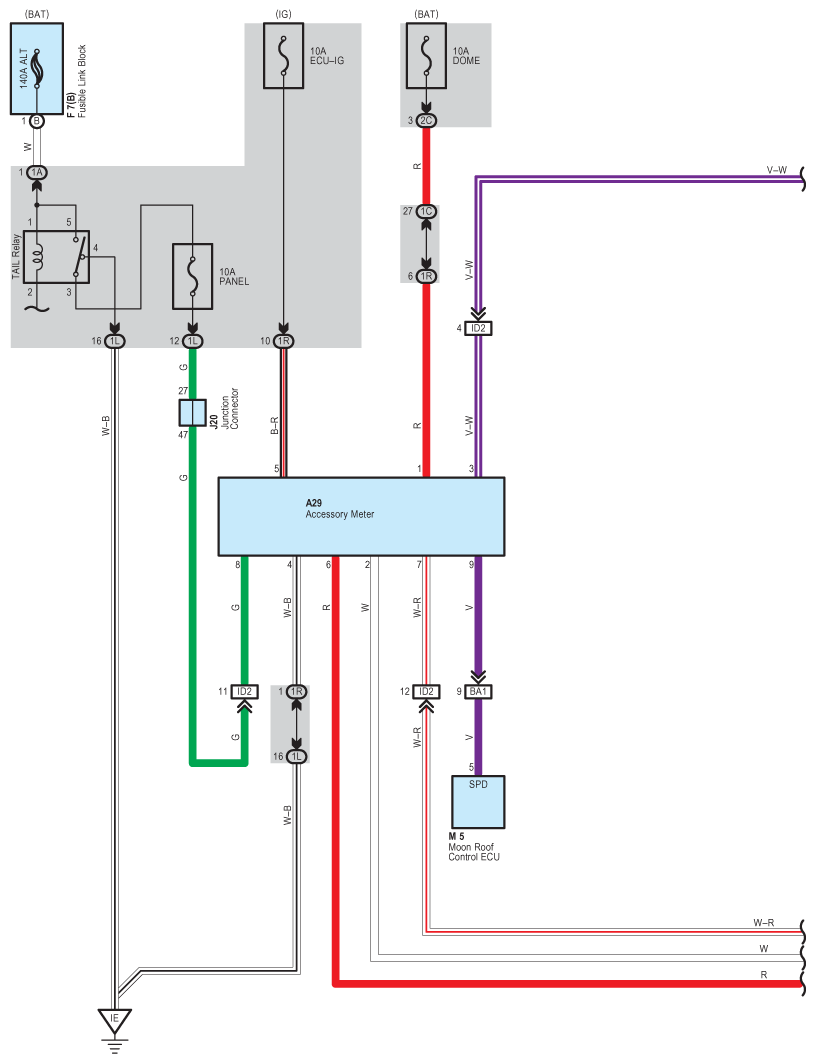

Fig 1: Accessory Meter And Garage Door Opener - Circuit Diagram (1 Of 2)
G07609506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Accessory Meter And Garage Door Opener - Circuit Diagram (2 Of 2)
G07609507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
