ABS (w/ VSC), TRAC and VSC: Notes

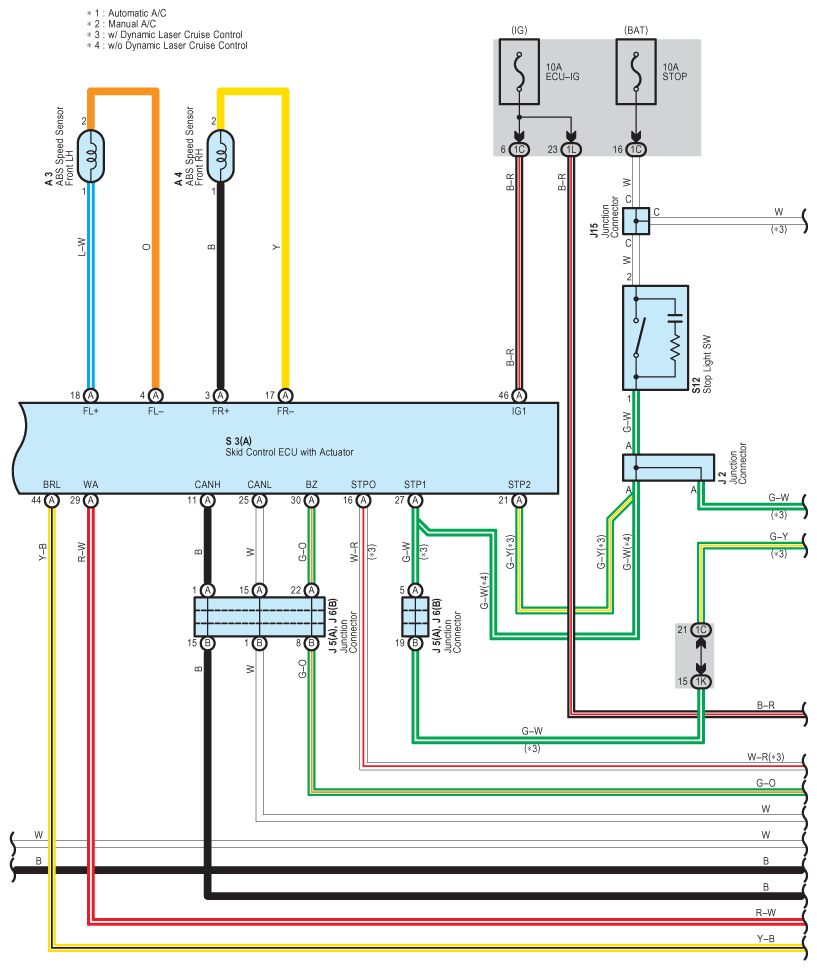

Fig 1: ABS (W/ VSC), TRAC And VSC - Circuit Diagram (1 Of 5)
G07609482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

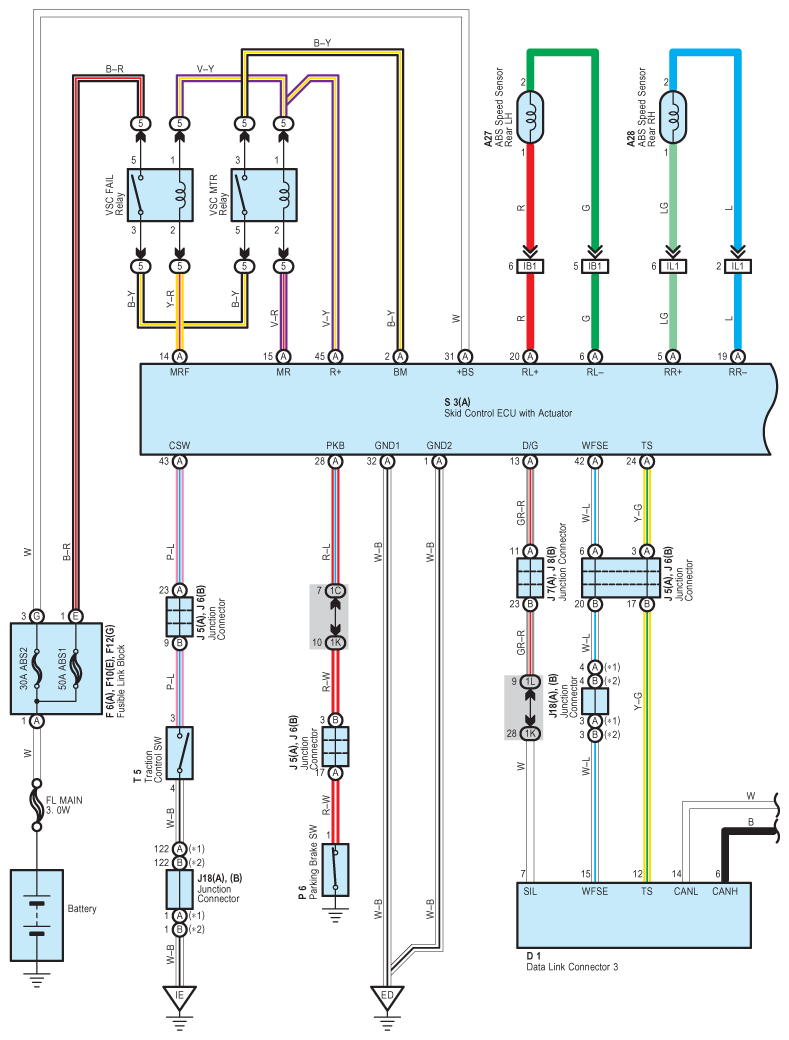

Fig 2: ABS (W/ VSC), TRAC And VSC - Circuit Diagram (2 Of 5)
G07609483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

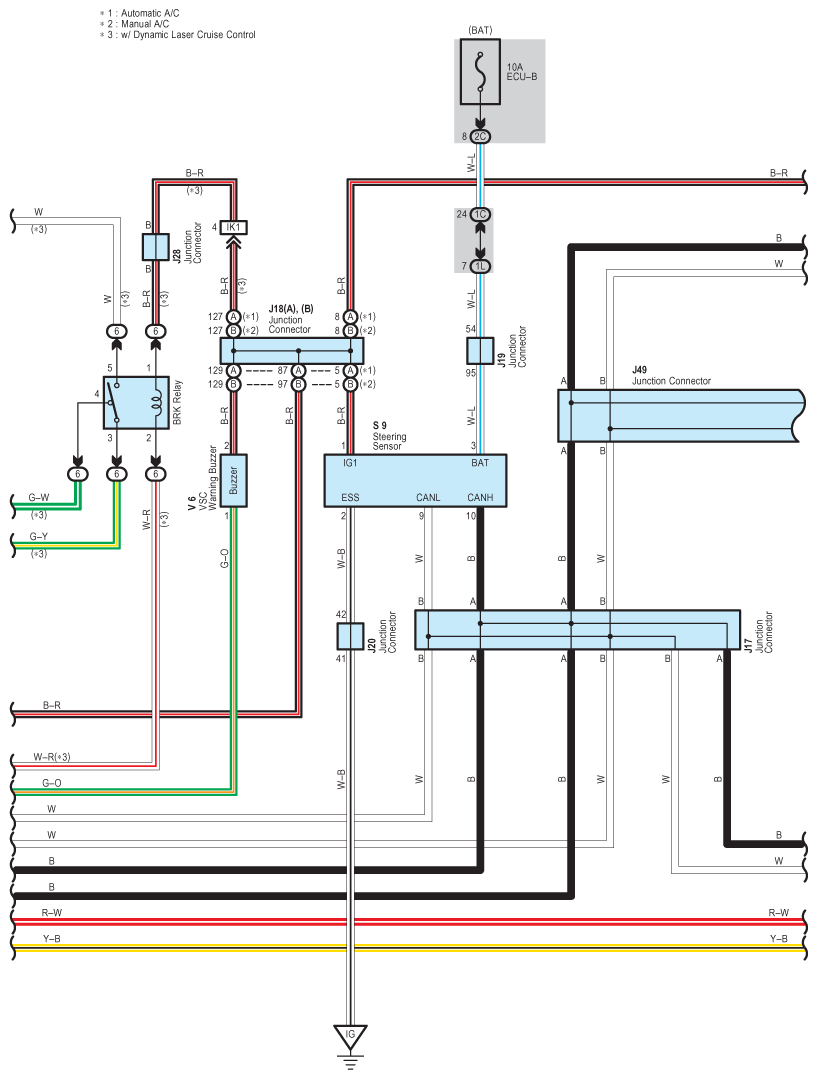

Fig 3: ABS (W/ VSC), TRAC And VSC - Circuit Diagram (3 Of 5)
G07609484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

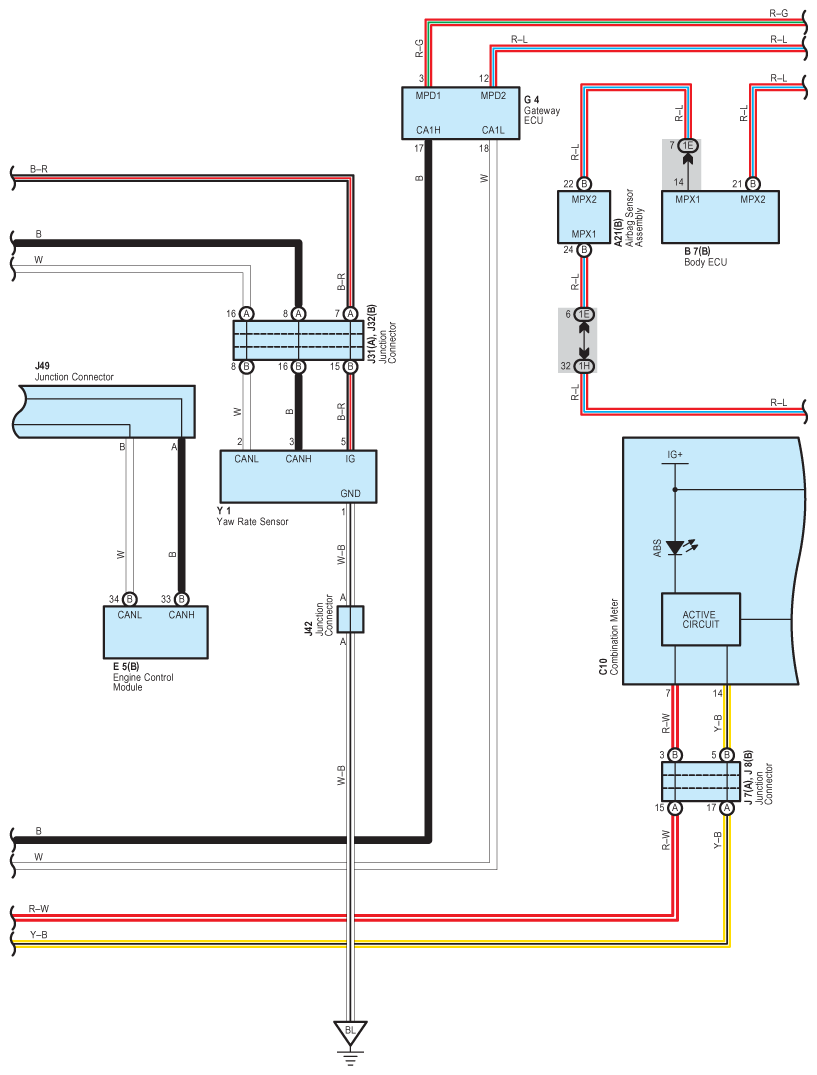

Fig 4: ABS (W/ VSC), TRAC And VSC - Circuit Diagram (4 Of 5)
G07609485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

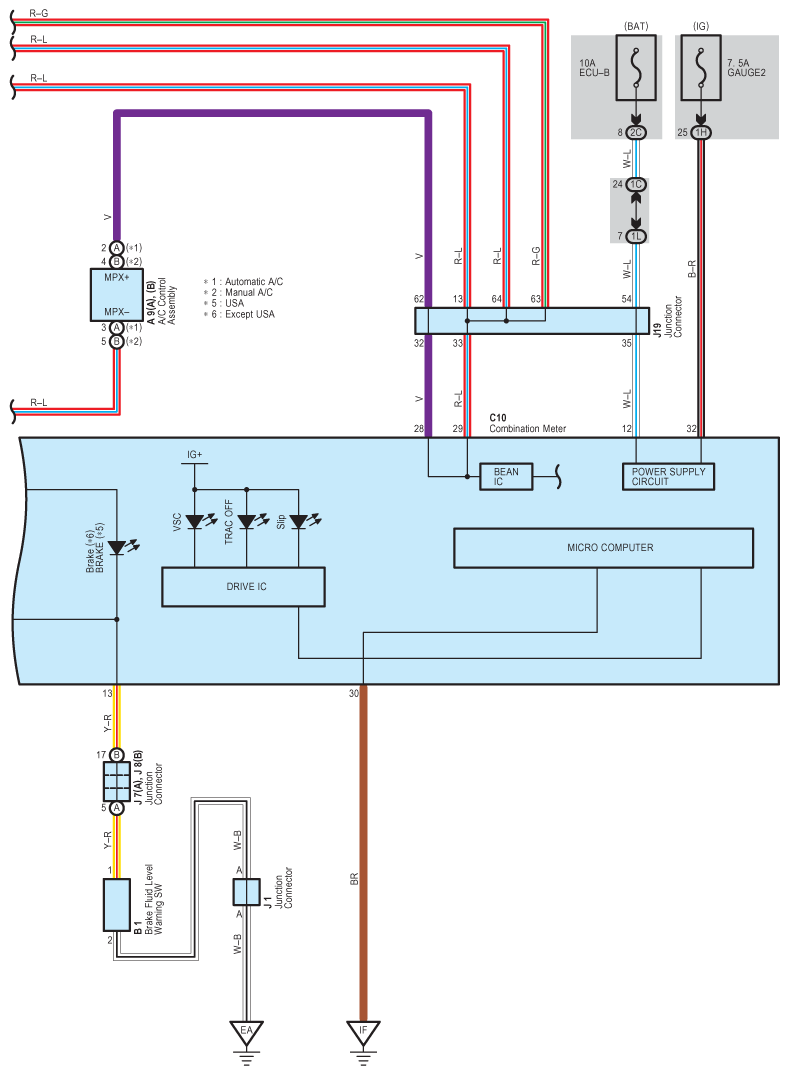

Fig 5: ABS (W/ VSC), TRAC And VSC - Circuit Diagram (5 Of 5)
G07609486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
