DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

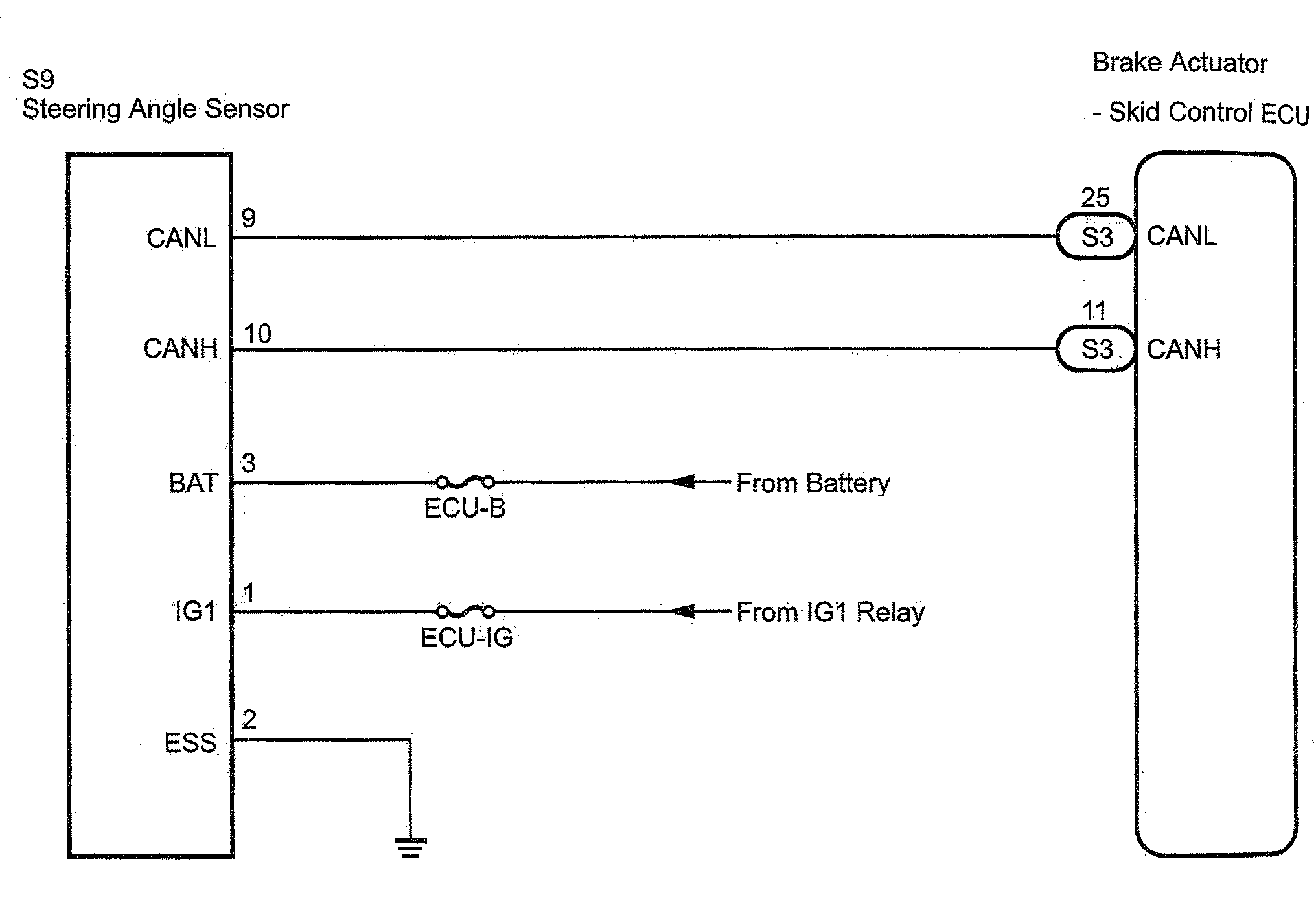

Fig 1: Steering Angle Sensor Circuit - Wiring Diagram

G00461036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
