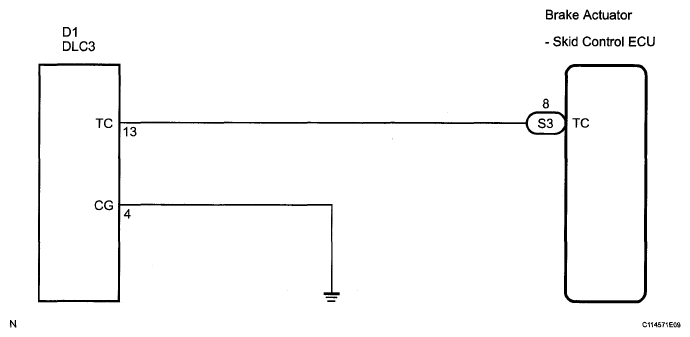

TC and CG Terminal Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
When warning lights continue to blink, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in one or more ECU is suspected.
