Power Windows do not Operate at All: Wiring Diagram

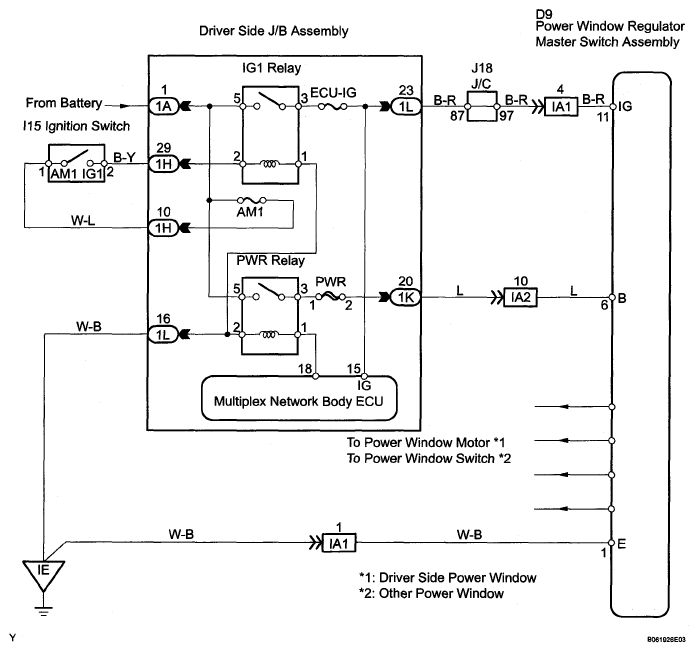

Fig 1: Power Windows Regulator Master Switch Assembly - Wiring Diagram

G05141658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
