Outer Mirror Switch: Inspection

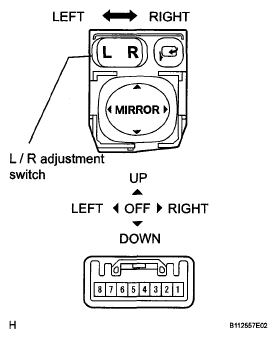

- INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Memory)
- The L side of the left / right adjustment switch: Inspect the mirror switch resistance.
Standard resistance (Left side)
TERMINALS REFERENCETerminal No. Switch Position Specified Condition - OFF 10 kΩ or higher 4 - 8 UP Below 1 Ω 6 - 7 4 - 7 DOWN Below 1 Ω 6 - 8 5 - 8 LEFT Below 1 Ω 6 - 7 5 - 7 RIGHT Below 1 Ω 6 - 8 If the result is not as specified, replace the switch assembly.
- The R side of the left / right adjustment switch: Inspect the mirror switch resistance.
Standard resistance (Right side)
TERMINALS REFERENCETerminal No. Switch Position Specified Condition - OFF 10 kΩ or higher 3 - 8 UP Below 1 Ω 6 - 7 3 - 7 DOWN Below 1 Ω 6 - 8 2 - 8 LEFT Below 1 Ω 6 - 7 2 - 7 RIGHT Below 1 Ω 6 - 8 If the result is not as specified, replace the switch assembly.
- The L side of the left / right adjustment switch: Inspect the mirror switch resistance.

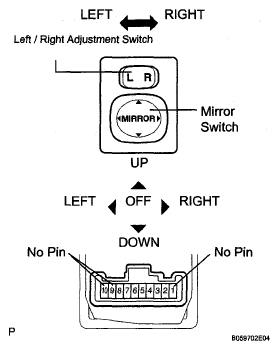

- INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Memory)
- Remove the outer mirror control switch.
- Measure the resistance according to the value(s) in the table below when the switch is operated.
Resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Position Specified Condition 2 - 3 OFF 10 kΩ or higher UP + L or R((1)) 80 to 120 Ω DOWN + L or R ((1)) 450 to 490 Ω LEFT + L or R((1)) 780 to 820 Ω RIGHT + L or R((1)) 230 to 270 Ω 1 - 2 L 90 to 110 Ω R 10 Ω or less 4 - 7
6 - 8Driving position (Unfold) Below 1 Ω 4 - 8
6 - 6Retract position (Fold) Below 1 Ω (1) The L or R of the left / right adjustment switch.
