Roof Headlining: Installation

INSTALL ROOF HEADLINING ASSEMBLY
1. w/sliding roof:
  Install the roof headlining with the 5 clips.
2. w/o sliding roof:
  Install the roof headlining with the 3 clips.

  NOTE: In order to prevent the roof headlining from becoming bent, work must be performed by 2 or more persons when removing/installing it.

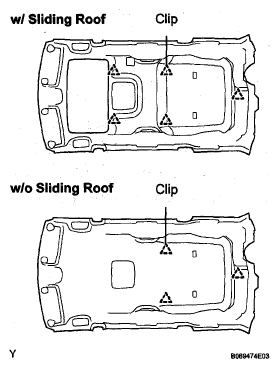

  Fig 1: Identifying Roof Headlining Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF CONSOLE BOX
1. Temporarily install the 2 screws to the retainer.
2. Set the console box, as shown in the illustration.
3. Slide the console box in the direction indicated by the arrow mark in the illustration so that the screws can meet the keyholes.
4. Tighten the 2 screws.
5. Tighten the 2 torx screws.

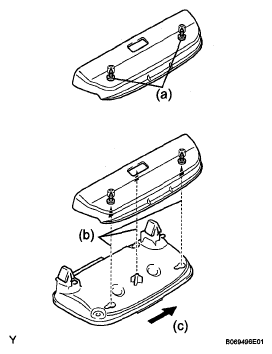

  Fig 2: Identifying Roof Console Box And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
