Transponder Key Ecu: Installation

  1. INSTALL TRANSPONDER KEY ECU
    1. Install the transponder key ECU with the nut.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

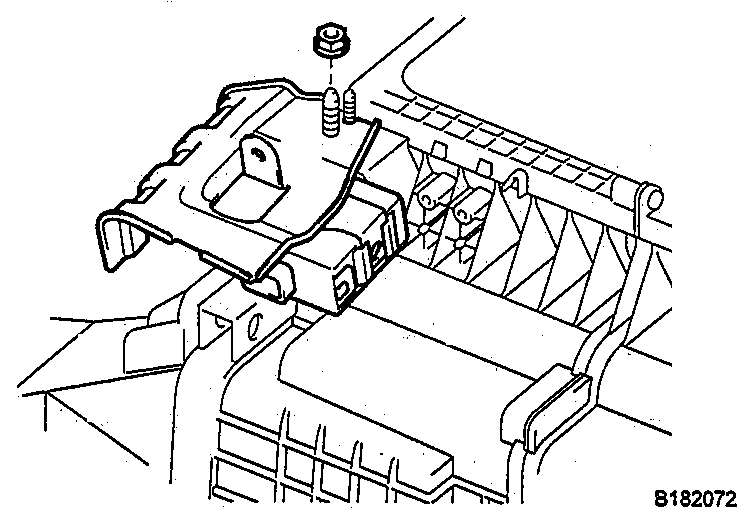

      2. Fig 1: Locating Transponder Key ECU And Nut
      G00461034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSPONDER KEY BRACKET (w/ Bracket)
    1. Install the transponder key bracket with the nut.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

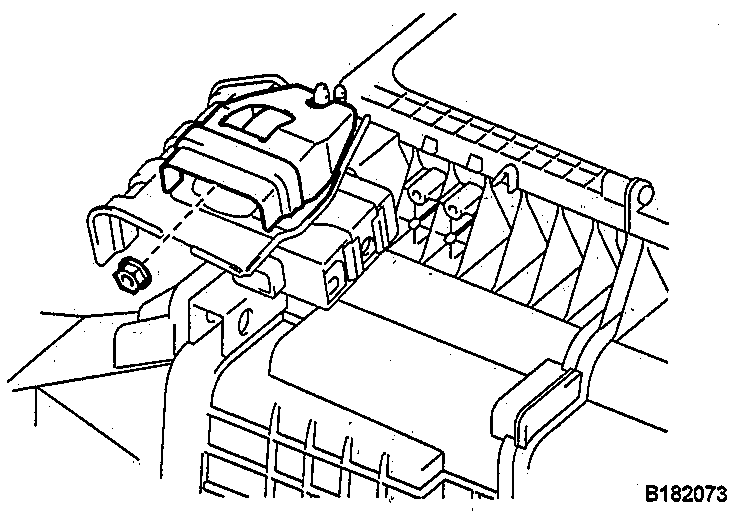

      2. Fig 2: Locating Transponder Key Bracket And Nut
      G00461033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CONDITIONING UNIT ASSEMBLY  (See INSTALLATION )
  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  (See INSTALLATION )
  5. REGISTER ECU COMMUNICATION ID
    NOTE:

    When replacing the transponder key ECU, perform initialization (See REGISTRATION )

  6. REGISTER KEY
    NOTE:

    When replacing the transponder key ECU, perform initialization (See REGISTRATION )
